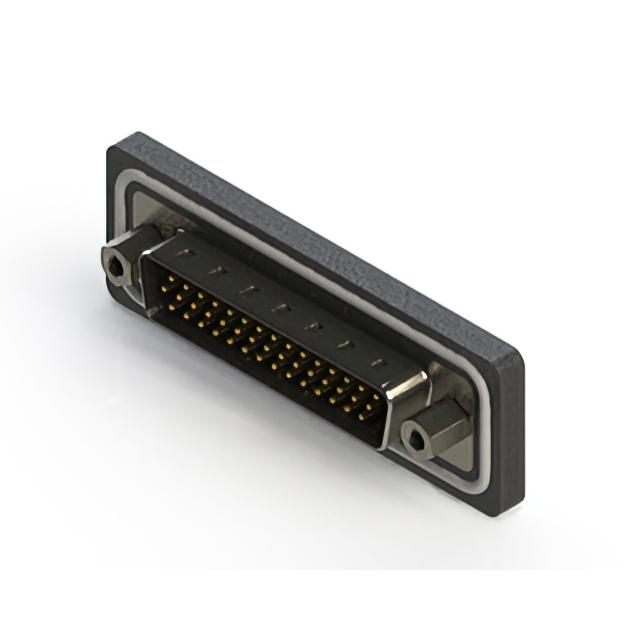

637-W44-321-012

Active

EDAC Inc.

637W (WATERPROOF) SERIES VERTICA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-W44-321-012

Active

EDAC Inc.

637W (WATERPROOF) SERIES VERTICA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-W44-321-012

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder

637-W44 Series

Part	Material Flammability Rating	Number of Positions	Connector Type	Features	Number of Rows	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Ingress Protection	Flange Feature	Dielectric Material	Contact Type	Connector Style	Shell Material, Finish	Mounting Type	Contact Finish	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Contact Material	Color	Termination	Contact Finish Thickness
EDAC Inc. 637-W44-622-012	UL94 V-0	44	Male Pins Plug	Grounding Indents Shielded	3	3 A	-25 °C	85 °C	0.76 Ám	30 Áin	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT)	Signal	D-Sub High Density	Nickel Plated Steel	Free Hanging (In-Line)	Gold	3	B DB	Copper Alloy	Black
EDAC Inc. 637-W44-621-012	UL94 V-0	44	Male Pins Plug	Grounding Indents Shielded	3	3 A	-25 °C	85 °C	0.76 Ám	30 Áin	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT)	Signal	D-Sub High Density	Nickel Plated Steel	Through Hole	Gold	3	B DB	Copper Alloy	Black	Solder
EDAC Inc. 637-W44-222-012	UL94 V-0	44	Male Pins Plug	Grounding Indents Shielded	3	3 A	-25 °C	85 °C			IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT)	Signal	D-Sub High Density	Nickel Plated Steel	Free Hanging (In-Line)	Gold	3	B DB	Copper Alloy	Black		Flash
EDAC Inc. 637-W44-321-012	UL94 V-0	44	Male Pins Plug	Grounding Indents Shielded	3	3 A	-25 °C	85 °C	0.38 µm	15 µin	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT)	Signal	D-Sub High Density	Nickel Plated Steel	Through Hole	Gold	3	B DB	Copper Alloy	Black	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 17.65

Description

General part information

637-W44 Series

44 Position D-Sub, High Density Plug, Male Pins Connector
