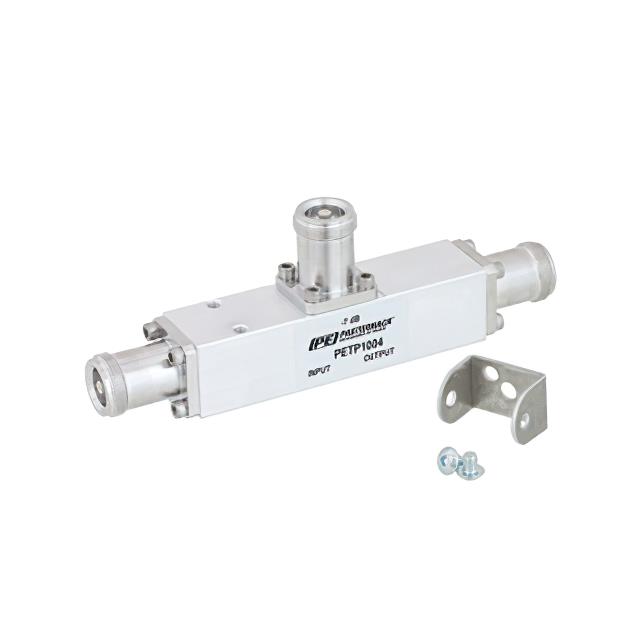

PETP1004
ObsoletePasternack
LOW PIM 7 DB 4.1/9.5 MINI DIN UN
PETP1004
ObsoletePasternack
LOW PIM 7 DB 4.1/9.5 MINI DIN UN
Description
General part information
PETP1004
RF Directional Coupler LTE, PCS, WiMAX 350MHz ~ 5.85GHz 7dB 300W Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PETP1004 |
|---|---|
| Applications | LTE, WiMax, PCS |
| Coupler Type | Standard |
| Coupling Factor | 7 dB |
| Frequency (Max) | 5.85 GHz |
| Frequency (Min) | 350 MHz |
| Insertion Loss | 0.17 dB |
| Package / Case | Module |
| Package Name | Module |
| Power - Max | 300 W |
| Return Loss | -19.8 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
