FERRITE CORE E SET
9498117002
ActiveFair-Rite Products Corp.
FERRITE CORE E SET
Description
General part information
9498117002

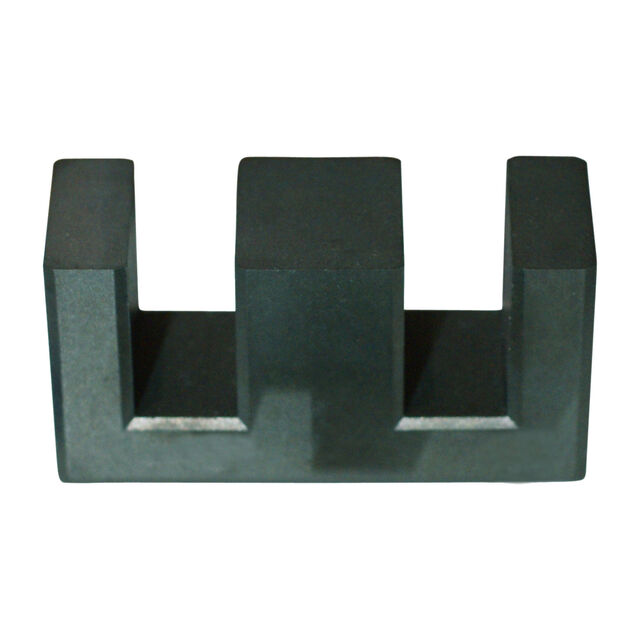

Uncoated Ferrite Core E Type Length Width Diameter Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 9498117002 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 28 mm⁻¹ |
| Core Type | E |
| Effective Area (Ae) | 531 mm² |
| Effective Length (le) | 147 mm |
| Effective Magnetic Volume (Ve) | 78100 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Initial Permeability (µi) | 2400 |
| Minimum Core Cross Section (Amin) (mm²) | 529 mm² |
| Tolerance | 25 % |
