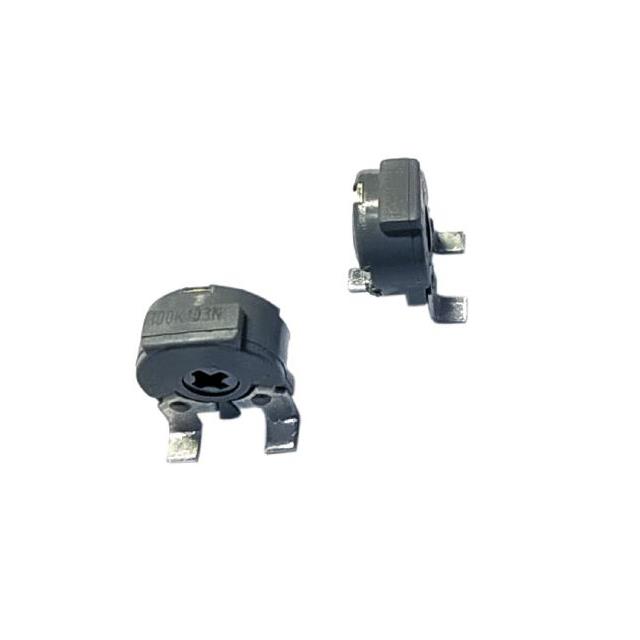

PS6MH40-502A3030-PM
ActiveAmphenol Piher Sensing Systems
TRIMMER 5K OHM 0.1W GW SIDE ADJ
PS6MH40-502A3030-PM
ActiveAmphenol Piher Sensing Systems
TRIMMER 5K OHM 0.1W GW SIDE ADJ
Description
General part information
PS6MH40-502A3030-PM
5 kOhms 0.1W, 1/10W Gull Wing Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | PS6MH40-502A3030-PM |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 turns |
| Power (Watts) | 100 mW |
| Power (Watts) Options | 1/10W |
| Resistance | 5 kOhm |
| Resistive Material | Carbon |
| Size / Dimension Diameter | 0.248 in |
| Size / Dimension Shape | Round |
| Temperature Coefficient | 1500 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 30 % |
