Description
General part information
TDB1050502

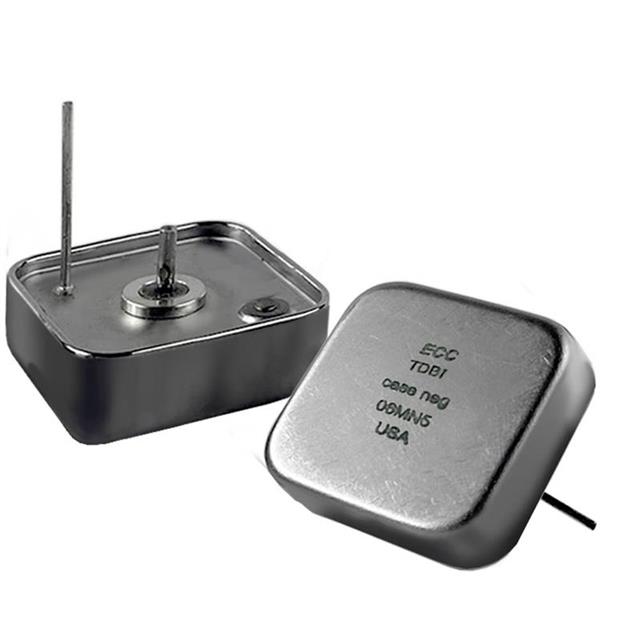

5 mF Hermetically Sealed Tantalum Capacitors 50 V Radial, Can 90mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | TDB1050502 |
|---|---|
| Capacitance | 5 mF |
| ESR (Equivalent Series Resistance) | 90 mOhm |
| Features | Hybrid Wet Tantalum |
| Height - Seated (Max) | 0.344 in |
| Lead Spacing | 0.4 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 1 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 50 V |
