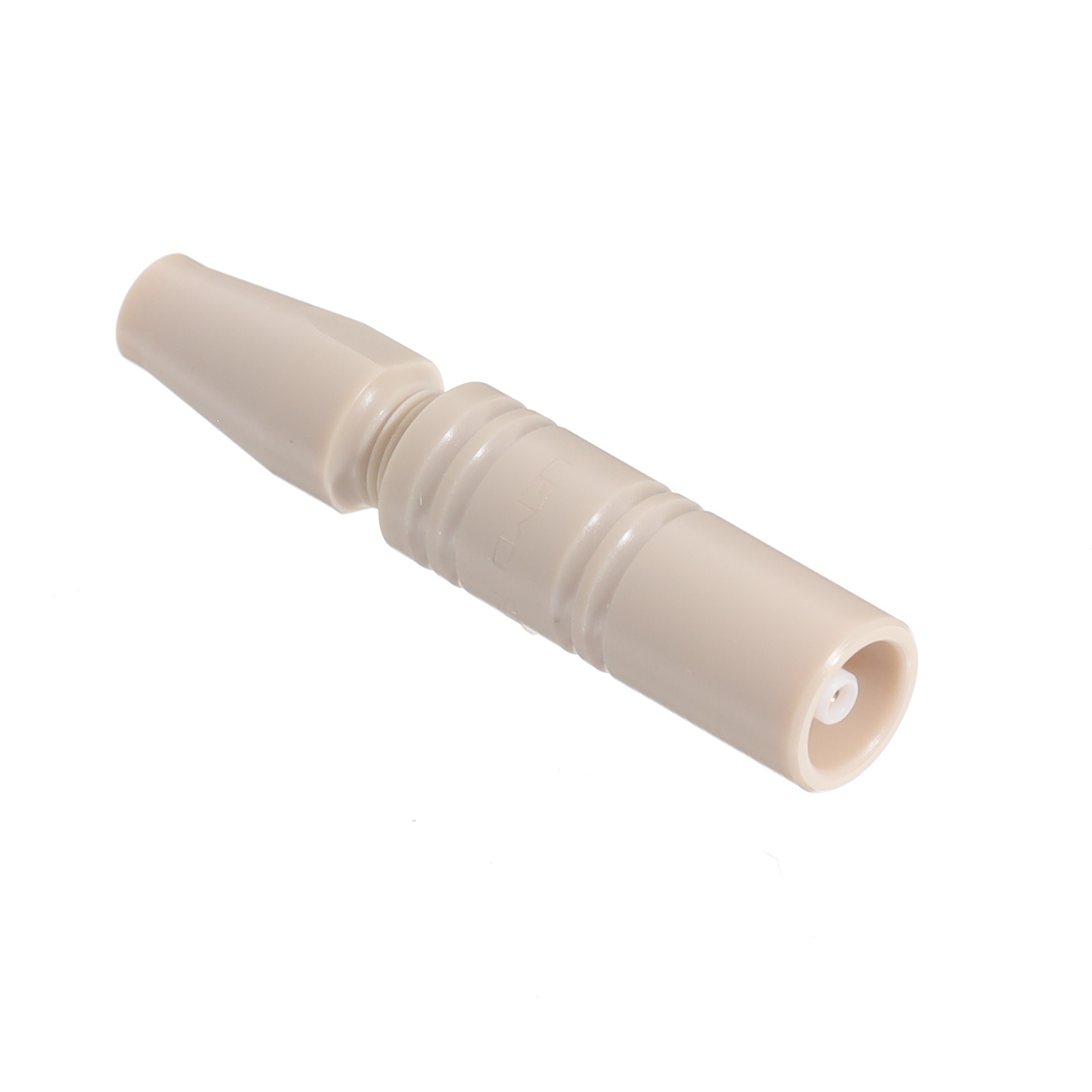

PCA.00.250.GTLC31
ActiveLEMO
CONN RCPT STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCA.00.250.GTLC31
ActiveLEMO
CONN RCPT STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PCA.00.250.GTLC31 | PCA.00 Series |
|---|---|---|
| Backshell Material, Plating | - | Brass, Chrome |
| Body Finish | - | Chrome, Nickel |
| Body Material | - | Brass |
| Cable Group | RG-174A | RG-174A, RG-403, RG-316, RG-178B, 196A, 174A, 187, RG-174, 179, 188, 316, RG-195A, 179B, 187A, 188A |
| Cable Opening | - | 0.114 in |
| Cable Opening | - | 2.9 mm |
| Cable Opening | - | 2.2 mm |
| Cable Opening | - | 1.7 mm |
| Cable Opening | - | 0.067 in |
| Cable Opening | - | 0.087 in |
| Center Contact Material | Bronze | Brass, Bronze |
| Center Contact Plating | Gold | Gold |
| Color | - | Silver |
| Connector Style | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549, Triaxial |
| Connector Type | Receptacle, Female Socket | Male Pin, Receptacle, Female Socket, Receptacle, Female Sockets |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | 59 Áin |
| Contact Finish Thickness - Mating | - | 1.5 Ám |
| Contact Material | - | Bronze |
| Contact Termination | Solder | Solder |
| Current Rating (Amps) | - | 8 A |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull | Push-Pull |
| Features | - | Backshell |
| Housing Color | Natural | Silver, Natural |
| Impedance | 50 Ohms | 50 Ohms |
| Ingress Protection | IP50 | IP50 |
| Insert Material | - | Polytetrafluoroethylene (PTFE) |
| Mating Cycles | 5000 | 5000 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | - | 1 |
| Number of Positions | - | 1 |
| Operating Temperature [Max] | 250 °C | 250 - 260 ░C |
| Operating Temperature [Min] | -50 °C | -55 - -50 °C |
| Orientation | - | A |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome |
| Shell Material | - | Brass |
| Shell Size - Insert | - | 113 |
| Shield Termination | Clamp | Clamp |
| Shielding | - | Shielded |
| Voltage Rating | 700 VDC | 700 VDC |
PCA.00 Series
CONN RCPT STR 50 OHM SOLDER
| Part | Voltage Rating | Dielectric Material | Cable Group | Mating Cycles | Connector Style | Connector Type | Body Finish | Ingress Protection | Center Contact Plating | Impedance | Body Material | Housing Color | Mounting Type | Fastening Type | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Shield Termination | Number of Ports | Orientation | Current Rating (Amps) | Number of Positions | Shell Finish | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Cable Opening [custom] | Cable Opening [custom] | Features | Insert Material | Shielding | Contact Material | Color | Shell Size - Insert | Backshell Material, Plating | Primary Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
700 VDC | Polytetrafluoroethylene (PTFE) | RG-174A | 5000 | NIM-CAMAC CD/N 549 | Male Pin, Receptacle | Chrome | IP50 | Gold | 50 Ohms | Brass | Silver | Free Hanging (In-Line) | Push-Pull | Brass | -55 °C | 260 ░C | Solder | Clamp | ||||||||||||||||||||||||
700 VDC | Polyetheretherketone (PEEK) | RG-403 | 5000 | NIM-CAMAC CD/N 549, Triaxial | Female Socket, Receptacle | Chrome | IP50 | Gold | 50 Ohms | Brass | Silver | Free Hanging (In-Line) | Push-Pull | Bronze | -55 °C | 260 ░C | Solder | Clamp | 1 | |||||||||||||||||||||||
700 VDC | Polyetheretherketone (PEEK) | RG-174A | 5000 | NIM-CAMAC CD/N 549 | Female Socket, Receptacle | Chrome | IP50 | Gold | 50 Ohms | Brass | Silver | Free Hanging (In-Line) | Push-Pull | Bronze | -55 °C | 260 ░C | Solder | Clamp | ||||||||||||||||||||||||
Receptacle, Female Sockets | IP50 | Free Hanging (In-Line) | Push-Pull | -55 °C | 250 °C | A | 8 A | 1 | Chrome | Brass | 59 Áin | 1.5 Ám | Gold | 0.114 in | 2.9 mm | Backshell | Polytetrafluoroethylene (PTFE) | Shielded | Bronze | Silver | 113 | Brass, Chrome | Metal | |||||||||||||||||||
700 VDC | Polytetrafluoroethylene (PTFE) | 5000 | NIM-CAMAC CD/N 549 | Female Socket, Receptacle | Chrome | IP50 | Gold | 50 Ohms | Brass | Silver | Free Hanging (In-Line) | Push-Pull | Bronze | -55 °C | 260 ░C | Solder | Clamp | 1 | ||||||||||||||||||||||||
700 VDC | Polytetrafluoroethylene (PTFE) | RG-316 | 5000 | NIM-CAMAC CD/N 549 | Male Pin, Receptacle | Chrome | IP50 | Gold | 50 Ohms | Brass | Silver | Free Hanging (In-Line) | Push-Pull | Bronze | -55 °C | 260 ░C | Solder | Clamp | 1 | |||||||||||||||||||||||
700 VDC | Polyetheretherketone (PEEK) | RG-316 | 5000 | NIM-CAMAC CD/N 549 | Female Socket, Receptacle | Chrome | IP50 | Gold | 50 Ohms | Brass | Silver | Free Hanging (In-Line) | Push-Pull | Bronze | -55 °C | 260 ░C | Solder | Clamp | ||||||||||||||||||||||||
700 VDC | Polytetrafluoroethylene (PTFE) | RG-174A | 5000 | NIM-CAMAC CD/N 549 | Female Socket, Receptacle | IP50 | Gold | 50 Ohms | Natural | Free Hanging (In-Line) | Push-Pull | Bronze | -50 °C | 250 °C | Solder | Clamp | ||||||||||||||||||||||||||
700 VDC | Polytetrafluoroethylene (PTFE) | 5000 | NIM-CAMAC CD/N 549 | Female Socket, Receptacle | Chrome | IP50 | Gold | 50 Ohms | Brass | Silver | Free Hanging (In-Line) | Push-Pull | Bronze | -55 °C | 260 ░C | Solder | Clamp | 1 | ||||||||||||||||||||||||
Receptacle, Female Sockets | IP50 | Free Hanging (In-Line) | Push-Pull | -55 °C | 250 °C | A | 8 A | 1 | Chrome | Brass | 59 Áin | 1.5 Ám | Gold | Backshell | Polytetrafluoroethylene (PTFE) | Shielded | Bronze | Silver | 113 | Brass, Chrome | Metal | 2.2 mm | 1.7 mm | 0.067 in | 0.087 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 75.48 | |
Description
General part information
PCA.00 Series
NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Solder
