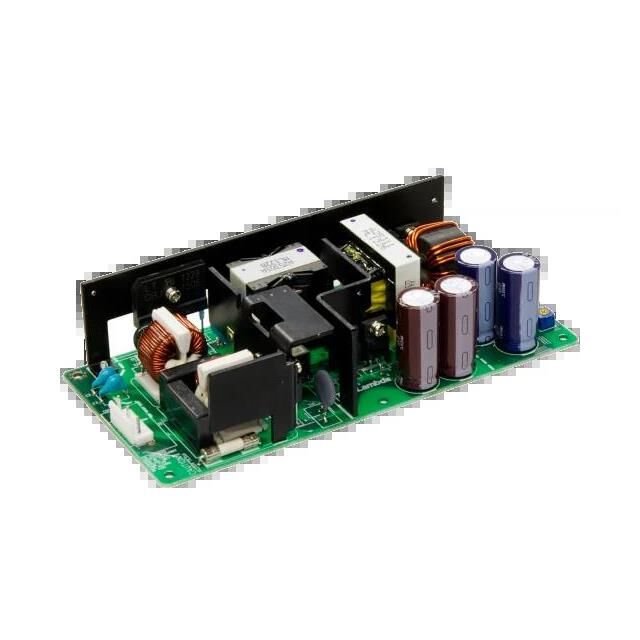

ZWS300BAF-24/CO2

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 24 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +3

ZWS300BAF-24/CO2

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 24 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 227.12
Newark	Each	1	$ 227.12
		10	$ 208.10
		25	$ 193.86
		50	$ 178.35

Description

General part information

ZWS300 Series

Open Frame, Conformal Coated AC DC Converters 1 Output 24V 85 ~ 265 VAC Input

Documents

Technical documentation and resources

Datasheet

Specification	ZWS300BAF-24/CO2	ZWS300 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Current - Output 1	12.5 A	6.3 - 25 A
Efficiency	88 %	88 - 89 %
Features	Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable	Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable, Remote On/Off
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	336 W	336 W
Power (Watts)	300 W	300 W
Size / Dimension [x]	7.09 in	7.09 in
Size / Dimension [x]	180 mm	180 mm
Size / Dimension [y]	84 mm	84 mm
Size / Dimension [y]	3.31 "	3.31 "
Size / Dimension [z]	1.65 "	1.65 "
Size / Dimension [z]	42 mm	42 mm
Type	Open Frame, Conformal Coated	Open Frame, Enclosed, Conformal Coated
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	24 V	12 - 48 V

Part

Efficiency

Approval Agency

Type

Features

Mounting Type

Operating Temperature [Min]

Operating Temperature [Max]

Size / Dimension [z]

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [x]

Size / Dimension [z]

Size / Dimension [y]

Voltage - Isolation

Power (Watts)

Current - Output 1

Voltage - Output 1

Voltage - Input [Min]

Voltage - Input [Max]

Applications

Number of Outputs

TDK-LAMBDA

ZWS300BAF-24

88 %

CE, cURus, TUV

Open Frame

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

12.5 A

24 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-48/L

88 %

CE, cURus, TUV

Open Frame

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

6.3 A

48 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-12/T

89 %

CE, cURus, TUV

Open Frame

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

25 A

12 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-24/T

88 %

CE, cURus, TUV

Open Frame

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

12.5 A

24 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-24/TA

88 %

CE, cURus, TUV

Enclosed

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

12.5 A

24 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-48

88 %

CE, cURus, TUV

Open Frame

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

6.3 A

48 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-12/TA

89 %

CE, cURus, TUV

Enclosed

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

25 A

12 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-24/L

88 %

CE, cURus, TUV

Open Frame

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

12.5 A

24 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-48/TA

88 %

CE, cURus, TUV

Enclosed

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

6.3 A

48 V

85 VAC

265 VAC

ITE (Commercial)

TDK-LAMBDA

ZWS300BAF-48/CO2

88 %

CE, cURus, TUV

Conformal Coated, Open Frame

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Chassis Mount

-10 °C

70 °C

1.65 "

7.09 in

84 mm

180 mm

42 mm

3.31 "

3000 V

336 W

300 W

6.3 A

48 V

85 VAC

265 VAC

ITE (Commercial)

Part	Efficiency	Approval Agency	Type	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Power (Watts)	Power (Watts)	Current - Output 1	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Number of Outputs
TDK-LAMBDA ZWS300BAF-24	88 %	CE, cURus, TUV	Open Frame	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	12.5 A	24 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-48/L	88 %	CE, cURus, TUV	Open Frame	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	6.3 A	48 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-12/T	89 %	CE, cURus, TUV	Open Frame	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	25 A	12 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-24/T	88 %	CE, cURus, TUV	Open Frame	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	12.5 A	24 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-24/TA	88 %	CE, cURus, TUV	Enclosed	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	12.5 A	24 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-48	88 %	CE, cURus, TUV	Open Frame	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	6.3 A	48 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-12/TA	89 %	CE, cURus, TUV	Enclosed	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	25 A	12 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-24/L	88 %	CE, cURus, TUV	Open Frame	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	12.5 A	24 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-48/TA	88 %	CE, cURus, TUV	Enclosed	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	6.3 A	48 V	85 VAC	265 VAC	ITE (Commercial)	1
TDK-LAMBDA ZWS300BAF-48/CO2	88 %	CE, cURus, TUV	Conformal Coated, Open Frame	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	Chassis Mount	-10 °C	70 °C	1.65 "	7.09 in	84 mm	180 mm	42 mm	3.31 "	3000 V	336 W	300 W	6.3 A	48 V	85 VAC	265 VAC	ITE (Commercial)	1
