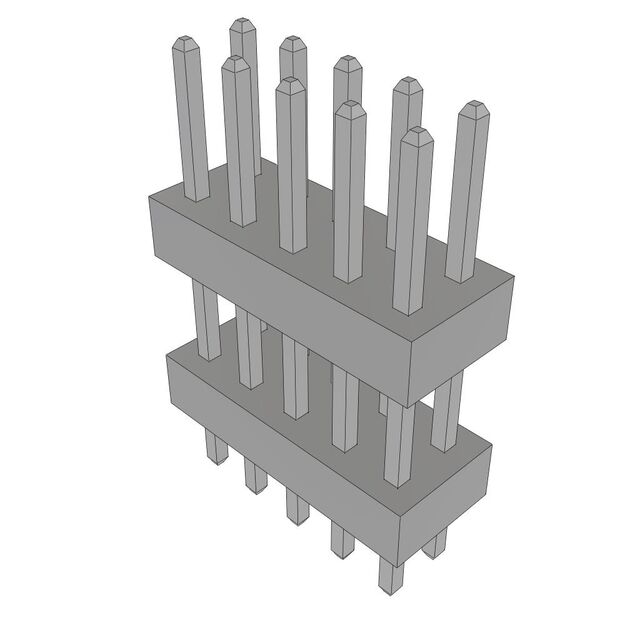

TW-05-05 Series

Part	Mounting Type	Length - Tail	Termination	Number of Rows	Color	Length - Stack Height	Row Spacing	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Pitch	Length - Post (Mating)	Length - Overall Pin
Samtec Inc. TW-04-05-G-D-175-239	Through Hole	0.239 in	Solder	2	Black	0.175 in	0.079 in	8	20 µin	Gold	0.079 in	0.18 in	0.594 in
Samtec Inc. TW-04-05-G-D-120-240	Through Hole	0.24 in	Solder	2	Black	0.12 in	0.079 in	8	20 µin	Gold	0.079 in	0.234 in	0.594 in
Samtec Inc. TW-04-05-G-D-340-136	Through Hole	0.136 in	Solder	2	Black	0.34 in	0.079 in	8	20 µin	Gold	0.079 in	0.118 in	0.594 in
Samtec Inc. TW-04-05-LM-D-300-090	Through Hole	0.09 in	Solder	2	Black	0.3 in	0.079 in	8	10 µin	Gold	0.079 in	0.204 in	0.594 in
Samtec Inc. TW-04-05-G-T-250-100	Through Hole	0.1 in	Solder	3	Black	0.25 in	0.079 in	12	20 µin	Gold	0.079 in	0.244 in	0.594 in
Samtec Inc. TW-04-05-S-D-250-150	Through Hole	0.15 in	Solder	2	Black	0.25 in	0.079 in	8	30 µin	Gold	0.079 in	0.194 in	0.594 in
Samtec Inc. TW-04-05-G-D-250-138	Through Hole	0.138 in	Solder	2	Black	0.25 in	0.079 in	8	20 µin	Gold	0.079 in	0.206 in	0.594 in
Samtec Inc. TW-04-05-T-D-200-200	Through Hole	0.2 in	Solder	2	Black	0.2 in	0.079 in	8		Tin	0.079 in	0.194 in	0.594 in
Samtec Inc. TW-04-05-T-Q-300-150	Through Hole	0.15 in	Solder	4	Black	0.3 in	0.079 in	16		Tin	0.079 in	0.144 in	0.594 in
Samtec Inc. TW-04-05-S-S-380-090	Through Hole	0.09 in	Solder	1	Black	0.38 in		4	30 µin	Gold	0.079 in	0.124 in	0.594 in
