291V1022F624AB
ActiveCTS Electrocomponents

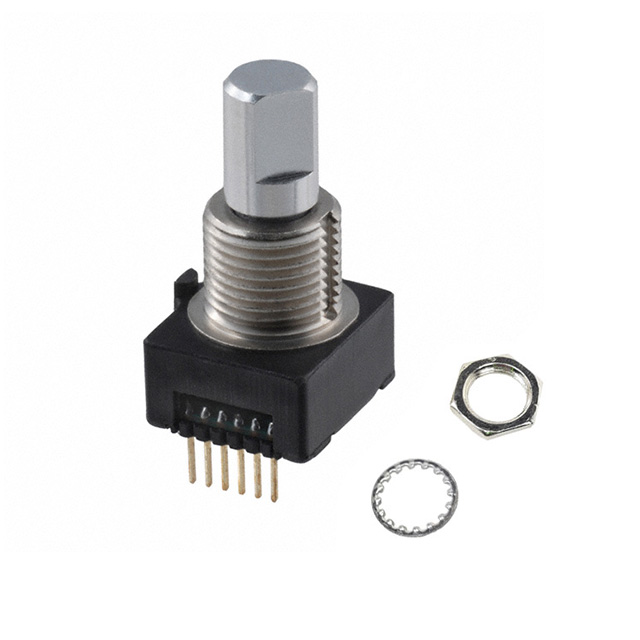

ROTARY ENCODER OPTICAL 6PPR
291V1022F624AB
ActiveCTS Electrocomponents
ROTARY ENCODER OPTICAL 6PPR
Description
General part information
291V1022F624AB
Rotary Encoder Optical 6 Quadrature (Incremental) Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 291V1022F624AB |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Type | Flatted End |
| Built in Switch | No |
| Detent | Yes |
| Encoder Type | Optical |
| Mounting Type | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 6 |
| Rotational Life (Cycles Min) | 1 M |
| Termination Style | PC Pin |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 4.75 V |
