AD-716F-QCM-PM-2.5
ActiveAmphenol Times Microwave Systems

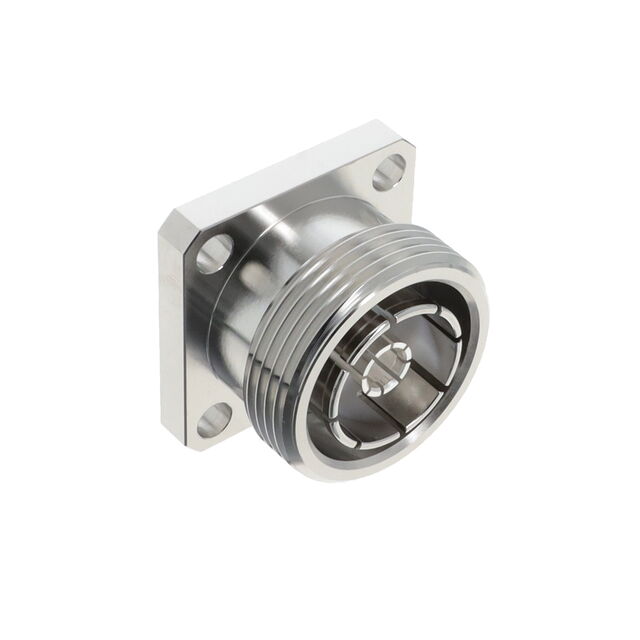

7/16 FEMALE INSTA-CHANGE ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD-716F-QCM-PM-2.5
ActiveAmphenol Times Microwave Systems
7/16 FEMALE INSTA-CHANGE ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AD-716F-QCM-PM-2.5 | AD-716 Series |
|---|---|---|
| Adapter Series | 7/16 to QC | 7/16 to QC |
| Adapter Type | Plug to Jack | Plug to Plug, Plug to Jack |
| Body Finish | White Bronze | White Bronze |
| Body Material | Brass | Brass |
| Center Contact Material | Beryllium Copper | Beryllium Copper |
| Center Contact Plating | Silver | Silver |
| Center Gender | - | Male to Male |
| Conversion Type | Between Series | Between Series |
| Convert From (Adapter End) | 7/16 Jack, Female Socket | 7/16 Plug, Male Pin, 7/16 Jack, Female Socket |
| Convert To (Adapter End) | QC Plug, Male Pin | QC Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On | Threaded, Snap-On |
| Frequency - Max [Max] | 2.5 GHz | 2.5 GHz |
| Impedance | 50 Ohms | 50 Ohms |
| Mating Cycles | 500 | 500 |
| Mounting Feature | Flange | Flange |
| Operating Temperature [Max] | 165 °C | 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Style | Straight | Straight |
AD-716 Series
7/16 MALE INSTA-CHANGE ADAPTER
| Part | Center Gender | Mating Cycles | Convert From (Adapter End) | Impedance | Fastening Type | Mounting Feature | Dielectric Material | Frequency - Max [Max] | Style | Center Contact Material | Body Material | Center Contact Plating | Adapter Type | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Adapter Series | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems AD-716M-QCM-PM-2.5 | Male to Male | 500 | 7/16 Plug, Male Pin | 50 Ohms | Snap-On, Threaded | Flange | Polytetrafluoroethylene (PTFE) | 2.5 GHz | Straight | Beryllium Copper | Brass | Silver | Plug to Plug | White Bronze | -65 ░C | 165 °C | Male Pin, QC Plug | 7/16 to QC | Between Series |
Amphenol Times Microwave Systems AD-716F-QCM-PM-2.5 | 500 | 7/16 Jack, Female Socket | 50 Ohms | Snap-On, Threaded | Flange | Polytetrafluoroethylene (PTFE) | 2.5 GHz | Straight | Beryllium Copper | Brass | Silver | Plug to Jack | White Bronze | -65 ░C | 165 °C | Male Pin, QC Plug | 7/16 to QC | Between Series |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 205.73 | |
| 10 | $ 161.00 | |||
| 25 | $ 146.88 | |||
| 50 | $ 137.37 | |||
Description
General part information
AD-716 Series
Adapter Coaxial Connector 7/16 Jack, Female Socket To QC Plug, Male Pin 50 Ohms
