CJ150AC-201

Active

Cinch Connectivity Solutions Trompeter

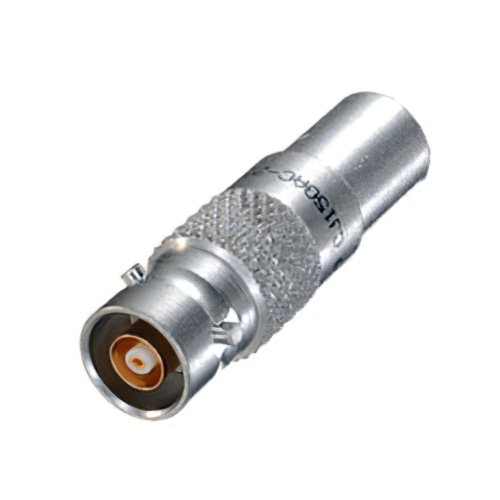

CONN TWIN/TRI TRS JACK STR CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TWIN/TRI TRS JACK STR CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 42.86

General part information

TRS, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CJ150AC-201	CJ150 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	M17/176-00002	M17/176-00002, TWC-124-1A, TWC-78-1
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TRS, Twinaxial/Triaxial	TRS, Twinaxial/Triaxial
Connector Type	Female Socket (Concentric), Jack	Female Socket (Concentric), Jack
Contact Termination	Crimp	Crimp, Solder
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Three Lug
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp, Wrench Clamp
Voltage Rating	400 V	400 V

CONN TWIN/TRI TRS JACK STR CRIMP

Part	Housing Color	Frequency - Max [Max]	Impedance	Number of Ports	Mounting Type	Center Contact Material	Contact Termination	Mating Cycles	Voltage Rating	Features	Body Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Body Material	Connector Style	Center Contact Plating	Fastening Type	Cable Group
Cinch Connectivity Solutions Trompeter CJ150AC-201	Silver	500 MHz	Non-Constant	1	Free Hanging (In-Line)	Beryllium Copper	Crimp	500	400 V	Three Lug	Nickel	Female Socket (Concentric), Jack	-65 ░C	200 °C	Crimp	Brass	TRS, Twinaxial/Triaxial	Gold	Bayonet Lock	M17/176-00002
Cinch Connectivity Solutions Trompeter CJ150-47	Silver	500 MHz	Non-Constant	1	Free Hanging (In-Line)	Beryllium Copper	Solder	500	400 V	Three Lug	Nickel	Female Socket (Concentric), Jack	-65 ░C	200 °C	Wrench Clamp	Brass	TRS, Twinaxial/Triaxial	Gold	Bayonet Lock	M17/176-00002
Cinch Connectivity Solutions Trompeter CJ150-29	Silver	500 MHz	Non-Constant	1	Free Hanging (In-Line)	Beryllium Copper	Solder	500	400 V	Three Lug	Nickel	Female Socket (Concentric), Jack	-65 ░C	200 °C	Wrench Clamp	Brass	TRS, Twinaxial/Triaxial	Gold	Bayonet Lock	TWC-124-1A, TWC-78-1
