6248BMQ
ActiveKanebridge
SQUARE HEAD BOLT - SQUARE HEAD -
6248BMQ
ActiveKanebridge
SQUARE HEAD BOLT - SQUARE HEAD -
Description
General part information
6248BMQ

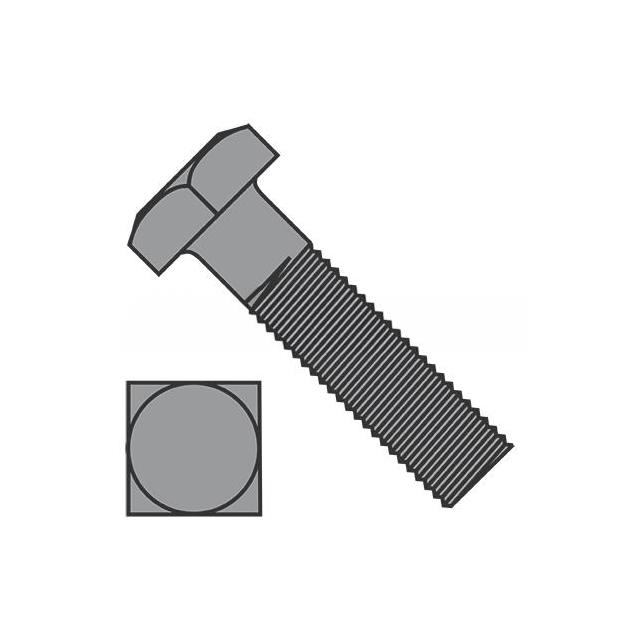

5/8"-11 Square Head Square Head Bolt Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 6248BMQ |
|---|---|
| Features | Standard |
| Head Diameter | 0.922 in |
| Head Height | 0.422 in |
| Length - Below Head | 3 in |
| Length - Overall | 3.422 in |
| Material | Steel |
| Plating | Plain |
| Screw Head Type | Square Head |
| Thread Pitch (TPI) | 11 TPI |
| Thread Size (Nominal) | 0.625 in |
| Type | Square Head Bolt |
