104340-1

Active

TE Connectivity AMP Connectors

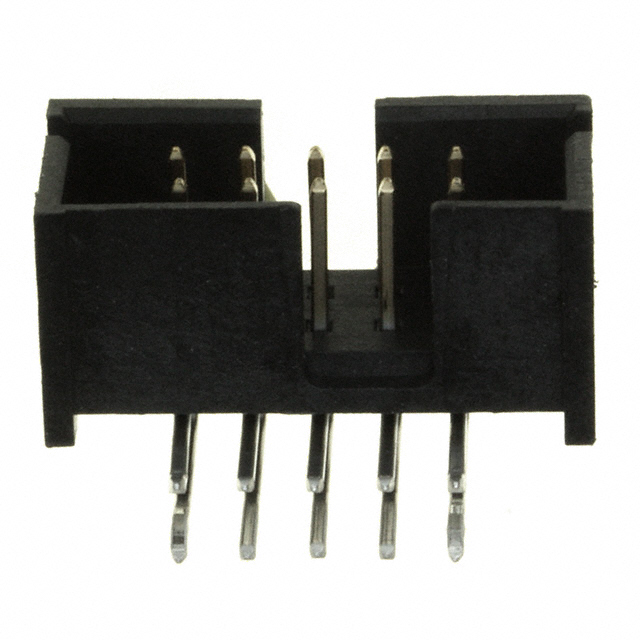

CONN HEADER R/A 10POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 10POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	104340-1

Connector Type	Header
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.365 in
Insulation Height	9.27 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN HEADER R/A 10POS 2.54MM

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Current Rating (Amps)	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Length - Mating	Contact Length - Mating [x]	Contact Shape	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Style	Contact Finish - Post	Number of Rows	Number of Positions	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type
TE Connectivity AMP Connectors 104340-1	Through Hole, Right Angle	15 µin	0.38 µm	Keying Slot	1 A	Shrouded - 4 Wall	3.18 mm	0.125 in	Header	6.1 mm	0.24 in	Square	0.365 in	9.27 mm	Phosphor Bronze	Gold or Gold-Palladium	Board to Cable/Wire	Tin-Lead	2	10	Kinked Pin, Solder	-65 ░C	105 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	All	UL94 V-0	Push-Pull	Black	2.54 mm	0.1 in	Male Pin

General part information

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
