0008520131
ActiveMolex

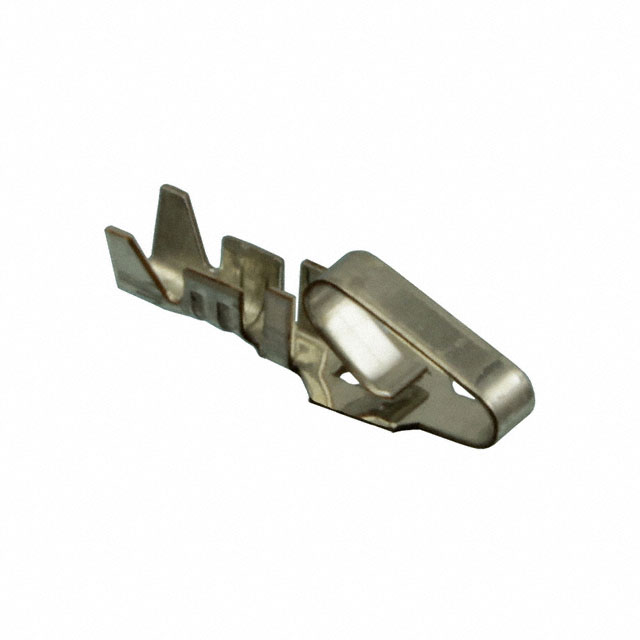

CONN 18-22AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0008520131
ActiveMolex
CONN 18-22AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0008520131 | 000852 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 2.54 µm | 1.02 - 2.54 µm |
| Contact Finish Thickness | 100 µin | 40 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Non-Gendered | Non-Gendered |
| Wire Gauge [Max] | 22 AWG | 22 - 30 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 - 22 AWG |
000852 Series
CONN 18-24AWG CRIMP TIN
| Part | Pin or Socket | Wire Gauge [Max] | Wire Gauge [Min] | Contact Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
Molex 0008520812 | Non-Gendered | 24 AWG | 17.5 AWG | Crimp | Tin | 2.54 µm | 100 µin |
Molex 0008520132 | Non-Gendered | 22 AWG | 17.5 AWG | Crimp | Tin | 2.54 µm | 100 µin |
Molex 0008520131 | Non-Gendered | 22 AWG | 17.5 AWG | Crimp | Tin | 2.54 µm | 100 µin |
Molex 0008520105 | Non-Gendered | 30 AWG | 22 AWG | Crimp | Tin | 1.02 Ám | 40 Áin |
Molex 0008520071 | Non-Gendered | 24 AWG | 17.5 AWG | Crimp | Tin | 2.54 µm | 100 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.17 | |
| 10 | $ 0.12 | |||
| 100 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 7000 | $ 0.05 | ||
| 14000 | $ 0.04 | |||
Description
General part information
000852 Series
Non-Gendered Contact Tin 18-22 AWG Crimp
