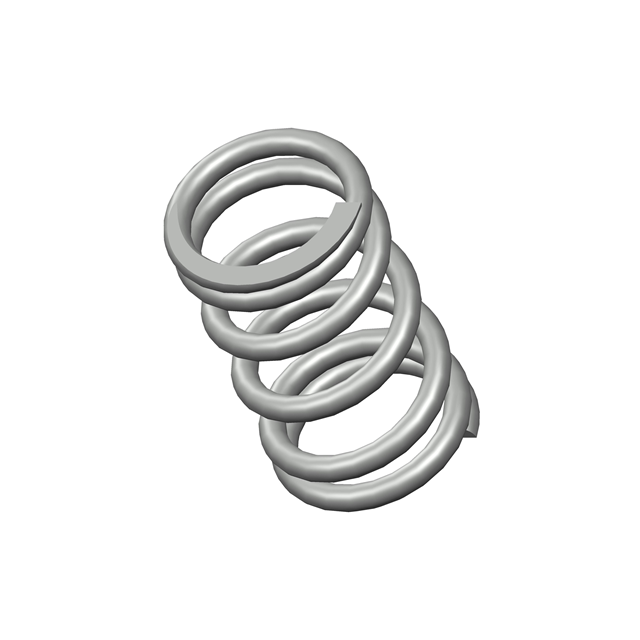

MM-40CS
ActiveCentury Spring Corp
COMP O= .500,L= .88,W= .064
MM-40CS
ActiveCentury Spring Corp
COMP O= .500,L= .88,W= .064
Description
General part information
MM-40CS
COMP O= .500,L= .88,W= .064
Technical Specifications
Parameters and characteristics for this part
| Specification | MM-40CS |
|---|---|
| Diameter - Inside | 0.372 in |
| Diameter - Outside | 0.5 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.88 in |
| Material | Spring Steel |
| Rate (lbs/in) | 73 lbs/in |
| Type | Compression |
| Wire Diameter | 0.064 in |
