M7WXK-0906J

Active

D-SUB CABLE - MFU09K/MC10G/X

Search across all available documentation for this part.

Active

D-SUB CABLE - MFU09K/MC10G/X

Technical Specifications

Parameters and characteristics commom to parts in this series

D-SUB CABLE - MFU50K/MC50M/X

Part	Color	Number of Positions	2nd Connector	Length	Length	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Type	Shielding	Contact Finish
3M M7WXK-5010R	Multiple, Ribbon	50	Individual Wire Leads	10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB50	Unshielded	Gold
3M M7WXK-3710R	Multiple, Ribbon	37	Individual Wire Leads	10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB37	Unshielded	Gold
3M M7WXK-5006R	Multiple, Ribbon	50	Individual Wire Leads	6 ft	1.83 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB50	Unshielded	Gold
3M M7WXK-5006J		50	Individual Wire Leads	6 ft	1.83 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB50	Unshielded	Gold
3M M7WXK-1506R	Multiple, Ribbon	15	Individual Wire Leads	6 ft	1.83 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB15	Unshielded	Gold
3M M7WXK-2506J			Individual Wire Leads	6 ft	1.83 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB25	Unshielded	Gold
3M M7WXK-2510R	Multiple, Ribbon		Individual Wire Leads	10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB25	Unshielded	Gold
3M M7WXK-1510J		15	Individual Wire Leads	10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB15	Unshielded	Gold
3M M7WXK-2510J			Individual Wire Leads	10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB25	Unshielded	Gold
3M M7WXK-5010J		50	Individual Wire Leads	10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets, Receptacle	DB50	Unshielded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

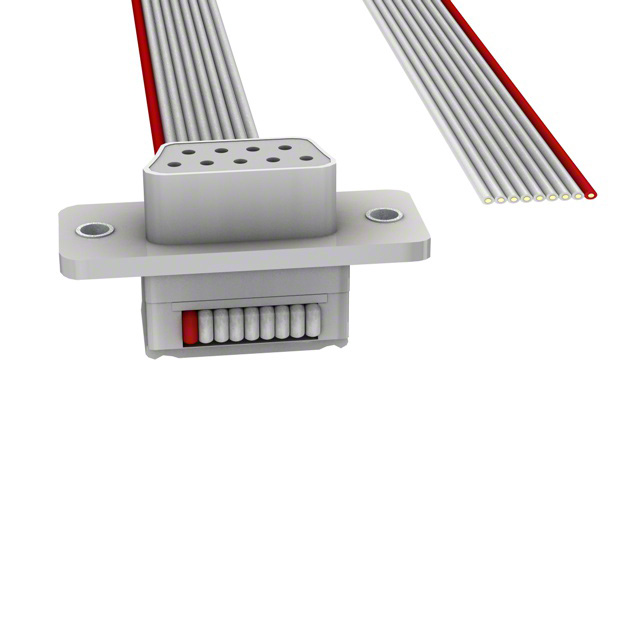

D-Sub Cable Assembly DB9 Gray, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Individual Wire Leads Unshielded
