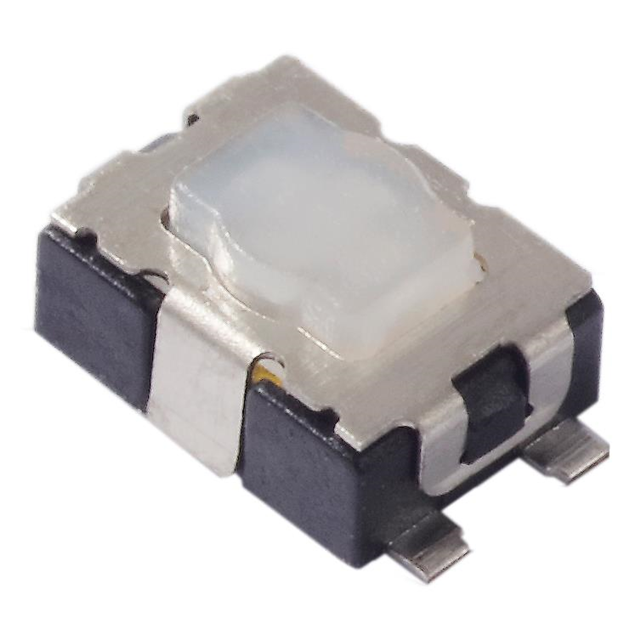

223JMVAARG

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 32V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 32V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	223JMVAARG	223JMV Series

Actuator Height off PCB, Vertical	1.9 mm	1.9 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Rectangular Button	Rectangular Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A	0.05 A
Features	Tactile Feedback, Grounding Pin	Tactile Feedback, Grounding Pin
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	150000 Cycles	150000 - 200000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	300 gf	200 - 300 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	4.2 mm	4.2 mm
Outline [y]	2.8 mm	2.8 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Actuator Height off PCB, Vertical	Ingress Protection	Illumination	Switch Function	Mechanical Life	Switch Travel	Actuator Orientation	Circuit	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Rating @ Voltage	Actuator Type	Operating Force	Outline [y]	Outline [x]
CTS Electrocomponents 223JMVAAR	1.9 mm	IP67 - Dust Tight, Waterproof	Non-Illuminated	Off-Mom	150000 Cycles	0.25 mm	Top Actuated	SPST-NO	Tactile Feedback	Surface Mount	85 °C	-40 °C	Gull Wing	0.05 A	Rectangular Button	300 gf	2.8 mm	4.2 mm
CTS Electrocomponents 223JMVAARG	1.9 mm	IP67 - Dust Tight, Waterproof	Non-Illuminated	Off-Mom	150000 Cycles	0.25 mm	Top Actuated	SPST-NO	Grounding Pin, Tactile Feedback	Surface Mount	85 °C	-40 °C	Gull Wing	0.05 A	Rectangular Button	300 gf	2.8 mm	4.2 mm
CTS Electrocomponents 223JMVABR	1.9 mm	IP67 - Dust Tight, Waterproof	Non-Illuminated	Off-Mom	200000 Cycles	0.25 mm	Top Actuated	SPST-NO	Tactile Feedback	Surface Mount	85 °C	-40 °C	Gull Wing	0.05 A	Rectangular Button	200 gf	2.8 mm	4.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	14000	$ 0.24

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
