B57500K0103A001
ActiveEPCOS - TDK Electronics
THERM NTC 10KOHM 3988K PROBE
B57500K0103A001
ActiveEPCOS - TDK Electronics
THERM NTC 10KOHM 3988K PROBE
Description
General part information
B57500K0103A001

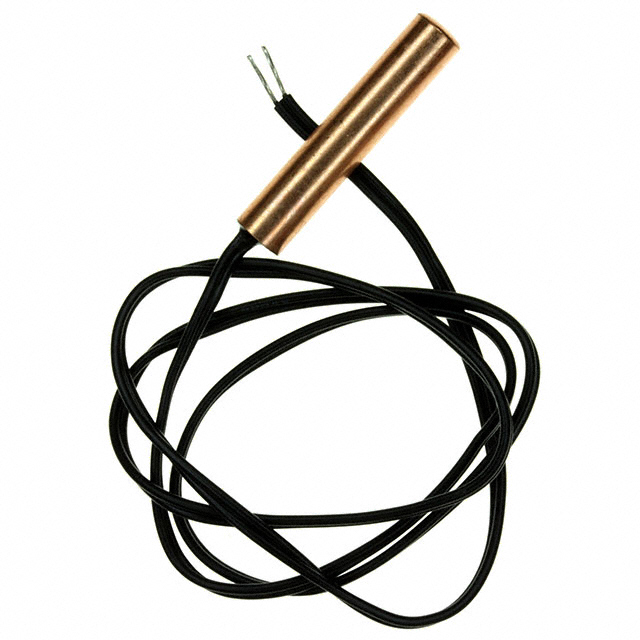

NTC Thermistor 10k Cylindrical Probe, Copper
Technical Specifications
Parameters and characteristics for this part
| Specification | B57500K0103A001 |
|---|---|
| B Value Tolerance | 0.5 % |
| Beta (B25/100) | 3988 K |
| Length - Lead Wire | 18.5 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Copper, Cylindrical Probe |
| Power - Max | 60 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 2 % |
