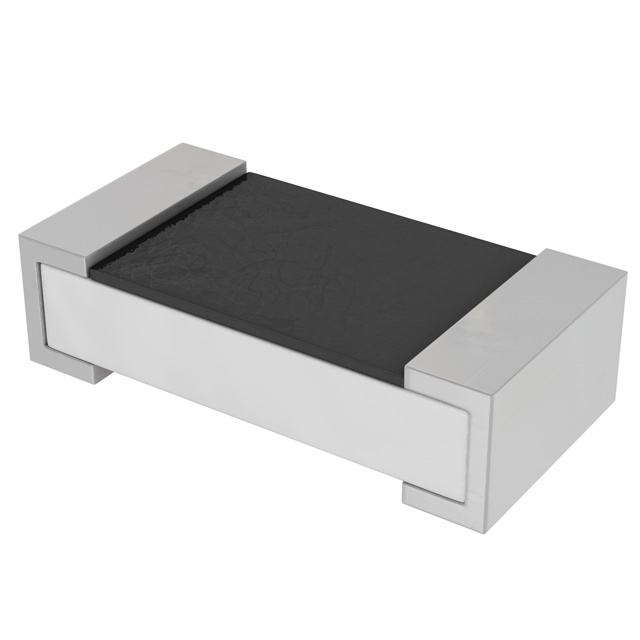

RC0603JR-074K7P
ActiveYAGEO
RES 4.7K OHM 5% 1/10W 0603
Deep-Dive with AI
Search across all available documentation for this part.
RC0603JR-074K7P
ActiveYAGEO
RES 4.7K OHM 5% 1/10W 0603
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RC0603JR-074K7P |
|---|---|
| Composition | Thick Film |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Power (Watts) | 0.1 W |
| Power (Watts) | 0.1 W |
| Ratings | 7C1, 100% Pb-Free, RoHS w/out Exemption |
| Resistance | 4.7 kOhms |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.01 | |||
| 50 | $ 0.01 | |||
| 100 | $ 0.01 | |||
| 500 | $ 0.01 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.01 | |||
| 50 | $ 0.01 | |||
| 100 | $ 0.01 | |||
| 500 | $ 0.01 | |||
| Tape & Reel (TR) | 5000 | $ 0.01 | ||
| 10000 | $ 0.00 | |||
Description
General part information
RC0603JR-074K7P
4.7 kOhms ±5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thick Film
Documents
Technical documentation and resources
