ANM80-4A
ActiveOptiFuse

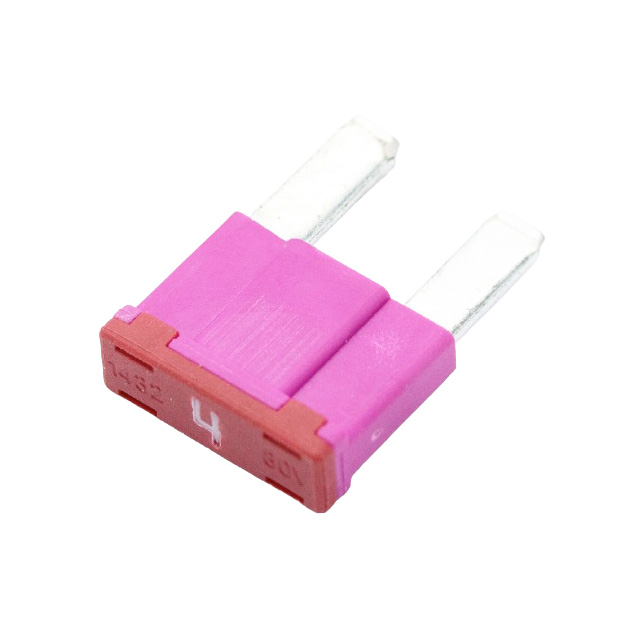

FUSE AUTOMOTIVE 4A 80VDC BLADE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANM80-4A
ActiveOptiFuse
FUSE AUTOMOTIVE 4A 80VDC BLADE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANM80-4A | ANM80 Series |
|---|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Pink | Clear, Dark Blue, Green, Pink, Black |
| Current Rating (Amps) | 4 A | 0.5 - 30 A |
| Fuse Type | Automotive | Automotive |
| Mounting Type | Requires Holder | Requires Holder |
| Package / Case | Blade, Miniature | Blade, Miniature |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 11.8 mm | 11.8 mm |
| Size / Dimension [x] | 0.465 in | 0.465 in |
| Size / Dimension [y] | 4 mm | 4 mm |
| Size / Dimension [y] | 0.157 in | 0.157 in |
| Size / Dimension [z] | 0.354 in | 0.354 in |
| Size / Dimension [z] | 9 mm | 9 mm |
| Voltage Rating - DC | 80 V | 80 V |
ANM80 Series
FUSE AUTO 25A 80VDC BLADE MINI
| Part | Package / Case | Fuse Type | Current Rating (Amps) | Color | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANM80-25A | Blade, Miniature | Automotive | 25 A | Clear | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | Requires Holder | 80 V | 1 kA | Fast Blow |
OptiFuse ANM80-500MA | Blade, Miniature | Automotive | 0.5 A | Dark Blue | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | Requires Holder | 80 V | 1 kA | Fast Blow |
OptiFuse ANM80-30A | Blade, Miniature | Automotive | 30 A | Green | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | Requires Holder | 80 V | 1 kA | Fast Blow |
OptiFuse ANM80-4A | Blade, Miniature | Automotive | 4 A | Pink | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | Requires Holder | 80 V | 1 kA | Fast Blow |
OptiFuse ANM80-1A | Blade, Miniature | Automotive | 1 A | Black | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | Requires Holder | 80 V | 1 kA | Fast Blow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.54 | |
| 10 | $ 2.47 | |||
| 25 | $ 2.40 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.66 | |||
| 250 | $ 1.50 | |||
| 500 | $ 1.25 | |||
| 1000 | $ 1.09 | |||
Description
General part information
ANM80 Series
4 A AC 80 V DC Fuse Automotive Requires Holder Blade, Miniature
