1-1337431-0

Active

TE Connectivity AMP Connectors

CONN BNC PLUG STR 75 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BNC PLUG STR 75 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1337431-0	1337431 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	187A, RG-179B	187A, RG-179B
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	2 GHz	2 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

CONN BNC PLUG STR 75 OHM CRIMP

Part	Body Finish	Voltage Rating	Cable Group	Mating Cycles	Number of Ports	Shield Termination	Body Material	Connector Style	Impedance	Contact Termination	Center Contact Plating	Housing Color	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Includes	Connector Type	Insertion Loss	Mounting Type	Fastening Type	Frequency - Max [Max]
TE Connectivity AMP Connectors 6-1337431-0	Nickel	500 V	187A, RG-179B	500	1	Crimp	Brass	BNC	75 Ohms	Crimp	Gold	Silver	Brass	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Contact, 1 Ferrule	Male Pin, Plug	0.2 dB	Free Hanging (In-Line)	Bayonet Lock	2 GHz
TE Connectivity AMP Connectors 1-1337431-0	Nickel	500 V	187A, RG-179B	500	1	Crimp	Brass	BNC	75 Ohms	Solder	Gold	Silver	Brass	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Contact, 1 Ferrule	Male Pin, Plug	0.2 dB	Free Hanging (In-Line)	Bayonet Lock	2 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

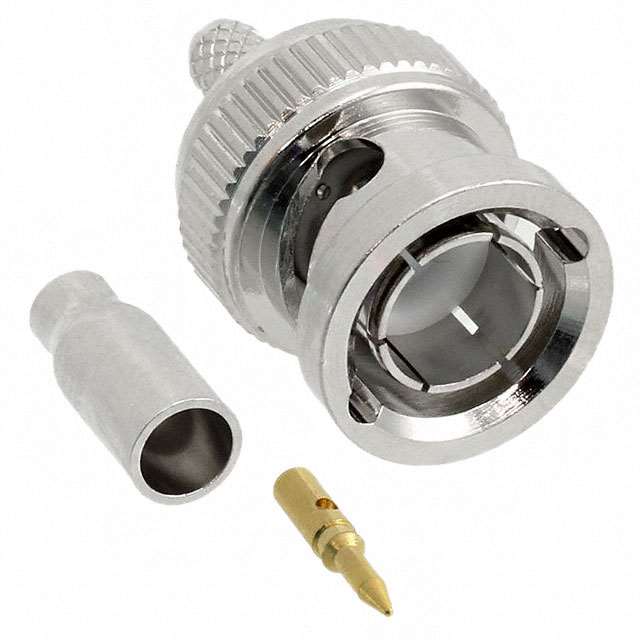

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
