MB85AS8MTPW-G-KBAERE1

Active

Kaga FEI America, Inc.

IC RAM 8MBIT SPI TYPE A 11WLCSP

Search across all available documentation for this part.

Active

Kaga FEI America, Inc.

IC RAM 8MBIT SPI TYPE A 11WLCSP

Technical Specifications

Parameters and characteristics for this part

IC RAM 8MBIT SPI TYPE A 11WLCSP

Part	Clock Frequency	Memory Organization [custom]	Memory Organization [custom]	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Memory Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Access Time	Memory Size	Package / Case	Memory Format	Write Cycle Time - Word, Page	Technology
Kaga FEI America, Inc. MB85AS8MTPW-G-KBAERE1	10 MHz	1 M	8 bits	SPI	1.6 V	3.6 V	2.07	11-WLP	2.88	Non-Volatile	Surface Mount	85 °C	-40 °C	35 ns	1024 KB	11-XFBGA, WLBGA	RAM	10 ms	ReRAM (Resistive RAM)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

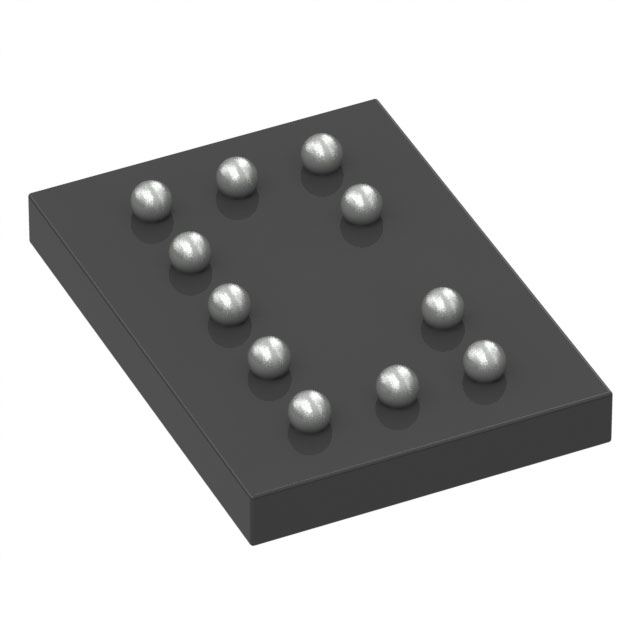

ReRAM (Resistive RAM) Memory IC 8Mbit SPI 10 MHz 35 ns 11-WLP (2.07x2.88)
