General part information

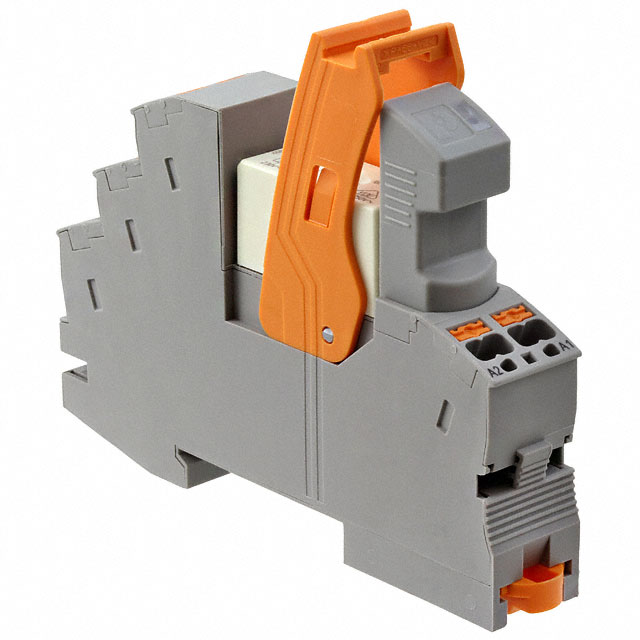

Industrial Relays RIF-1-RPT 230 V AC, 1 PDT
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2903335 |
|---|---|
| Coil Current | 6 mA |
| Coil Resistance | 38.3 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 50 mA |
| Features | Lighted Indicator, Varistor, Socket Included |
| Mounting Type | DIN Rail |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 36 VDC, 30 VAC |
| Termination Style | Spring Terminal |
Industrial Relays RIF-1-RPT 230 V AC, 1 PDT
| Part | Release Time | Mounting Type | Coil Voltage | Contact Material | Relay Type | Termination Style | Coil Type | Switching Voltage | Contact Form | Operate Time | Coil Resistance | Contact Rating (Current) | Coil Current | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2903335 | 20 ms | DIN Rail | 230 VAC | Gold (Au), Silver Nickel (AgNi) | General Purpose | Spring Terminal | Non Latching | 30 VAC, 36 VDC | SPDT (1 Form C) | 12 ms | 38.3 kOhms | 50 mA | 6 mA | Lighted Indicator, Socket Included, Varistor | -40 °C | 50 °C |
