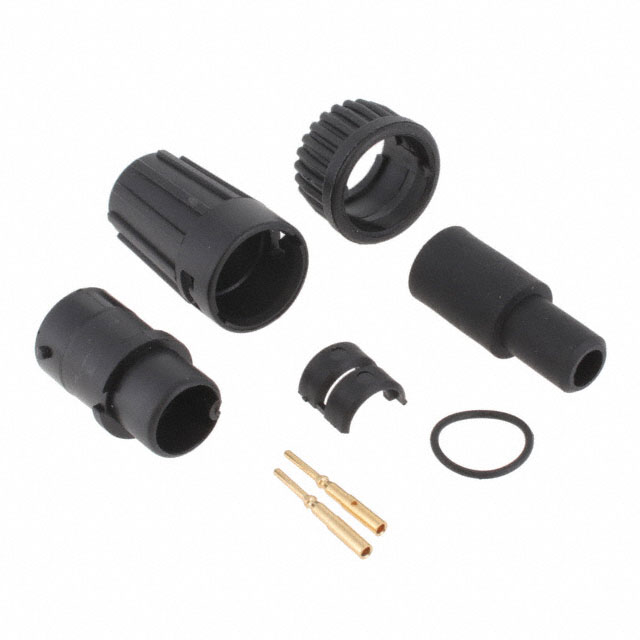

6280-2PG-519
ActiveConxall/Switchcraft
CONN PLUG MALE 2POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6280-2PG-519
ActiveConxall/Switchcraft
CONN PLUG MALE 2POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6280-2PG-519 | 6280-2PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.16 in |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 4.06 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening [Max] [diameter] | 0.21 in | 0.21 - 0.25 in |
| Cable Opening [Max] [diameter] | 5.33 mm | 5.33 - 6.35 mm |
| Cable Opening [Min] [diameter] | 0.19 in | 0.19 - 0.22 in |
| Cable Opening [Min] [diameter] | 4.83 mm | 4.83 - 5.59 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
6280-2PG Series
CONN PLUG MALE 2POS GOLD CRIMP
| Part | Number of Positions | Contact Material | Color | Ingress Protection | Applications | Termination | Primary Material | Contact Finish - Mating | Orientation | Voltage Rating | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Shielding | Connector Type | Fastening Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Current Rating (Amps) | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6280-2PG-516 | 2 | Brass | Black | Weathertight | Automotive, Communication Systems, Instrumentation | Crimp | Plastic | Gold | Keyed | 600 V | Free Hanging (In-Line) | Backshell | -40 °C | 115 °C | Nylon, Polyamide (PA) | Unshielded | Male Pins, Plug | Bayonet Lock | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | Varies by Wire Gauge | |||||||
Conxall/Switchcraft 6280-2PG-522 | 2 | Brass | Black | Weathertight | Automotive, Communication Systems, Instrumentation | Crimp | Plastic | Gold | Keyed | 600 V | Free Hanging (In-Line) | Backshell | -40 °C | 115 °C | Nylon, Polyamide (PA) | Unshielded | Male Pins, Plug | Bayonet Lock | Varies by Wire Gauge | 6.35 mm | 0.25 in | 0.22 in | 5.59 mm | |||||||
Conxall/Switchcraft 6280-2PG-321 | 2 | Brass | Black | Weathertight | Automotive, Communication Systems, Instrumentation | Crimp | Plastic | Gold | Keyed | 600 V | Free Hanging (In-Line) | Backshell | -40 °C | 115 °C | Nylon, Polyamide (PA) | Unshielded | Male Pins, Plug | Bayonet Lock | Varies by Wire Gauge | 0.23 in | 0.21 in | 5.33 mm | 5.84 mm | |||||||
Conxall/Switchcraft 6280-2PG-315 | 2 | Brass | Black | Weathertight | Automotive, Communication Systems, Instrumentation | Crimp | Plastic | Gold | Keyed | 600 V | Free Hanging (In-Line) | Backshell | -40 °C | 115 °C | Nylon, Polyamide (PA) | Unshielded | Male Pins, Plug | Bayonet Lock | Varies by Wire Gauge | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||
Conxall/Switchcraft 6280-2PG-519 | 2 | Brass | Black | Weathertight | Automotive, Communication Systems, Instrumentation | Crimp | Plastic | Gold | Keyed | 600 V | Free Hanging (In-Line) | Backshell | -40 °C | 115 °C | Nylon, Polyamide (PA) | Unshielded | Male Pins, Plug | Bayonet Lock | Varies by Wire Gauge | 5.33 mm | 0.21 in | 0.19 in | 4.83 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.32 | |
| 10 | $ 4.81 | |||
| 25 | $ 4.54 | |||
| 50 | $ 4.43 | |||
| 100 | $ 4.21 | |||
| 300 | $ 3.90 | |||
Description
General part information
6280-2PG Series
2 Position Circular Connector Plug, Male Pins Crimp
