5-103959-1
ActiveTE Connectivity AMP Connectors

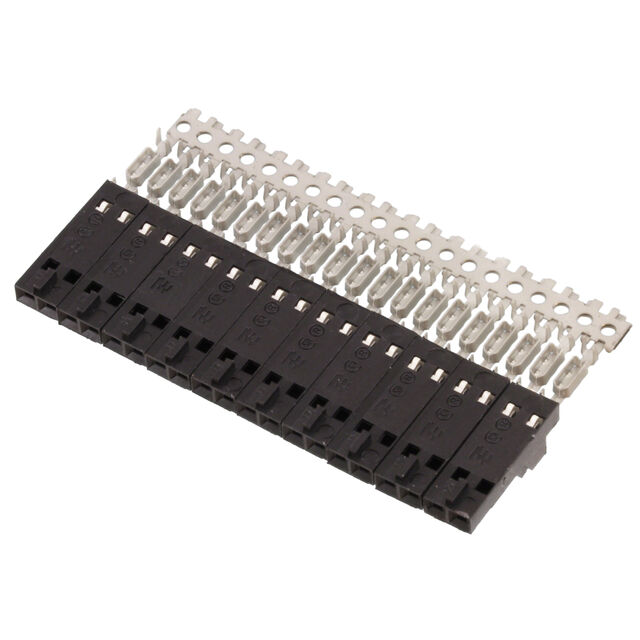

CONN RCPT 2POS IDC 26-30AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103959-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 2POS IDC 26-30AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103959-1 | 103959 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin-Lead, Tin |
| Contact Finish Thickness | 2.54 µm | 2.54 µm |
| Contact Finish Thickness | 100 µin | 100 µin |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 - 10 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 2.02 | |
| 30 | $ 1.85 | |||
| 50 | $ 1.77 | |||
| 110 | $ 1.66 | |||
| 330 | $ 1.52 | |||
| 550 | $ 1.46 | |||
| 1100 | $ 1.38 | |||
| 2530 | $ 1.29 | |||
| 5060 | $ 1.22 | |||
103959 Series
CONN RCPT 9POS IDC 26-30AWG
| Part | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Type | Features | Pitch [x] | Pitch [x] | Fastening Type | Number of Rows | Number of Positions | Wire Type | Contact Finish | Cable Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103959-8 | Free Hanging (In-Line) | 26 AWG | 30 AWG | 2.54 µm | 100 µin | Receptacle | Female Socket | Closed End | 2.54 mm | 0.1 in | Latch Lock | 1 | 9 | Discrete or Ribbon Cable | Tin-Lead | IDC | Black |
TE Connectivity AMP Connectors 103959-9 | Free Hanging (In-Line) | 26 AWG | 30 AWG | 2.54 µm | 100 µin | Receptacle | Female Socket | Closed End | 2.54 mm | 0.1 in | Latch Lock | 1 | 10 | Discrete or Ribbon Cable | Tin-Lead | IDC | Black |
TE Connectivity AMP Connectors 103959-7 | Free Hanging (In-Line) | 26 AWG | 30 AWG | 2.54 µm | 100 µin | Receptacle | Female Socket | Closed End | 2.54 mm | 0.1 in | Latch Lock | 1 | 8 | Discrete or Ribbon Cable | Tin-Lead | IDC | Black |
TE Connectivity AMP Connectors 103959-2 | Free Hanging (In-Line) | 26 AWG | 30 AWG | 2.54 µm | 100 µin | Receptacle | Female Socket | Closed End | 2.54 mm | 0.1 in | Latch Lock | 1 | Discrete or Ribbon Cable | Tin-Lead | IDC | Black | |
TE Connectivity AMP Connectors 5-103959-1 | Free Hanging (In-Line) | 26 AWG | 30 AWG | 2.54 µm | 100 µin | Receptacle | Female Socket | Closed End | 2.54 mm | 0.1 in | Latch Lock | 1 | 2 | Discrete or Ribbon Cable | Tin | IDC | Black |
TE Connectivity AMP Connectors 5-103959-8 | Free Hanging (In-Line) | 26 AWG | 30 AWG | 2.54 µm | 100 µin | Receptacle | Female Socket | Closed End | 2.54 mm | 0.1 in | Latch Lock | 1 | 9 | Discrete or Ribbon Cable | Tin | IDC | Black |
TE Connectivity AMP Connectors 103959-5 | Free Hanging (In-Line) | 26 AWG | 30 AWG | 2.54 µm | 100 µin | Receptacle | Female Socket | Closed End | 2.54 mm | 0.1 in | Latch Lock | 1 | 6 | Discrete or Ribbon Cable | Tin-Lead | IDC | Black |
Description
General part information
103959 Series
2 Position Rectangular Receptacle Connector IDC Tin 26-30 AWG
