704.040.7

Active

EAO

CONFIG SW BODY PUSHBUT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY PUSHBUT NON-ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.040.7	704.040 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Pushbutton, Round	Pushbutton, Round
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Maintained	Maintained

(704.040.5X) PUSHBUTTON-ACTUATOR GREY/GREEN MAIN D29

Part	Requires	Panel Cutout Dimensions	Actuator Type	Type	Illumination	(Select First, Then Apply Filters) Compatible Series
EAO 704.040.5	Contact Block(s)	22.3 mm	Pushbutton, Round	Maintained	Non-Illuminated	04, EAO
EAO 704.040.7	Contact Block(s)	22.3 mm	Pushbutton, Round	Maintained	Non-Illuminated	04, EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

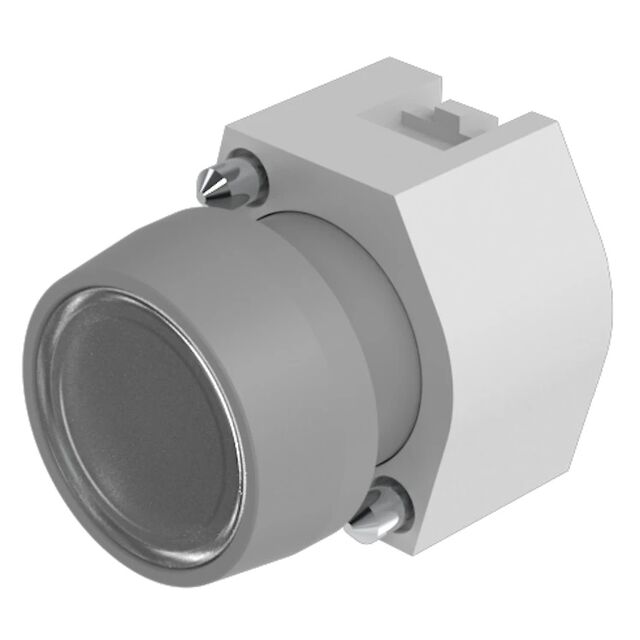

Configurable Switch Body Pushbutton, Round Non-Illuminated
