1-1337479-0

Active

TE Connectivity AMP Connectors

CONN SMB PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMB PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337479-0

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

CONN SMB PLUG STR 50 OHM SOLDER

Part	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Shield Termination	Fastening Type	Connector Type	Number of Ports	Housing Color	Dielectric Material	Body Material	Center Contact Material	Frequency - Max [Max]	Voltage Rating	Insertion Loss	Body Finish	Mating Cycles	Mounting Feature	Center Contact Plating	Impedance	Contact Termination
TE Connectivity AMP Connectors 1-1337479-0	1 Connector, 1 Lockwasher, 1 Nut	-65 ░C	165 °C	SMB	Solder	Snap-On	Jack, Male Pin	1	Gold	Polytetrafluoroethylene (PTFE)	Brass	Brass	4 GHz	250 VDC	0.3 dB	Gold	500	Bulkhead - Front Side Nut	Gold	50 Ohms	Solder Cup

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

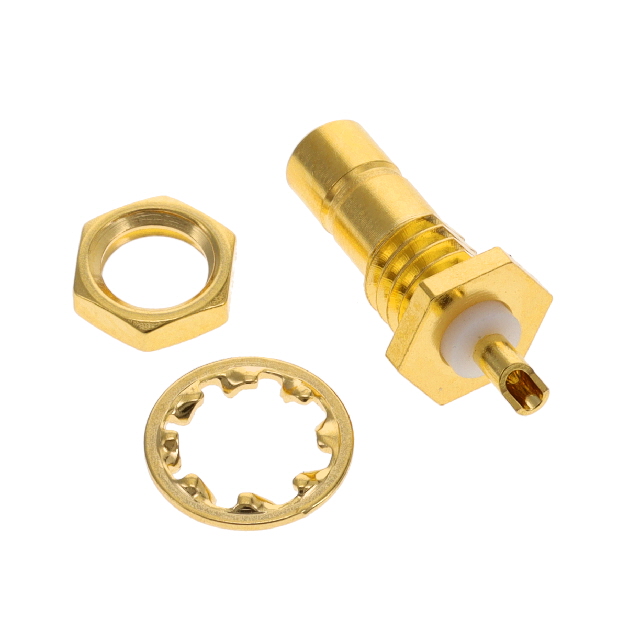

SMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
