310J101-20-CA006

Active

Cicoil

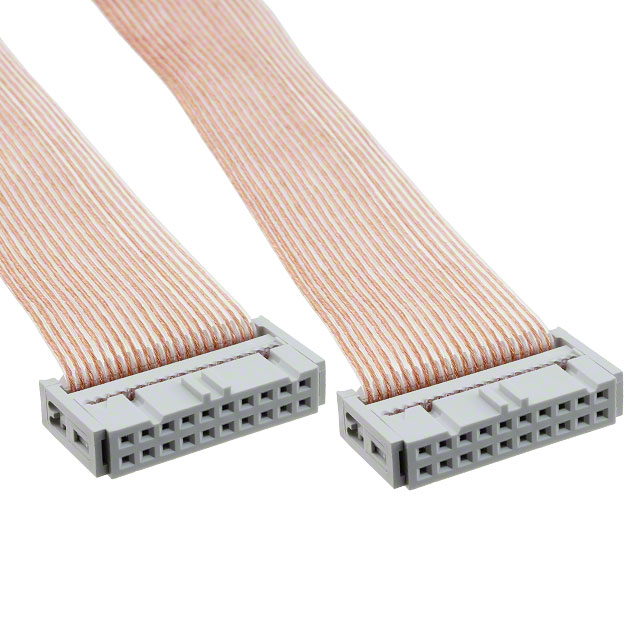

FLT RIB CBL .050" 28AWG 20C 6'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

310J101-20-CA006

Active

Cicoil

FLT RIB CBL .050" 28AWG 20C 6'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.37
		10	$ 32.72
		25	$ 31.31
		50	$ 30.30
		100	$ 29.29
		250	$ 27.67

Description

General part information

310J101 Series

20 Position Cable Assembly Rectangular Socket to Socket 6.00' (1.83m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	310J101-20-CA006	310J101 Series

Cable Termination	IDC	IDC
Cable Type	-	Flat Cable
Color	Clear, Ribbon	Clear, Ribbon
Conductor Material	-	Copper, Bare
Connector Type	Socket to Socket	Socket to Socket
Current Rating (Amps)	-	5 A
Insulation Resistance	-	200 MOhm
Jacket (Insulation) Material	-	Flexx-Sil™
Jacket Color	-	Clear
Length	6 ft	1 - 6000 ft
Length	1.83 m	1.83 - 304.8 m
Length	-	3 - 100 ft
Length	-	3.05 - 914.4 mm
Number of Conductors	-	10 - 64
Number of Positions	20	10 - 26
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature	-	-65 ░C
Operating Temperature	-	260 ░C
Pitch	-	0.05 in
Pitch	-	1.27 mm
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Ratings	-	CE, UL E324413
Ribbon Thickness	-	0.89 mm
Ribbon Thickness	-	0.035 in
Ribbon Width	-	1 - 63.5 in
Ribbon Width	-	25.4 mm
Ribbon Width	-	0.7 in
Ribbon Width	-	17.78 mm
Ribbon Width	-	0.8 - 3.2 in
Ribbon Width	-	20.32 - 81.28 mm
Ribbon Width	-	1.3 - 2.5 "
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Shielding	Unshielded	Unshielded
Voltage	-	450 V
Wire Gauge	-	28 AWG

310J101 Series

CBL RIBN 20COND 0.05 CLEAR 25'

Part	Pitch [x]	Pitch [x]	Jacket Color	Wire Gauge	Ribbon Width	Ribbon Width	Cable Type	Length	Length	Voltage	Current Rating (Amps)	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Shielding	Number of Conductors	Insulation Resistance	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Rows	Connector Type	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Color	Number of Positions	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width
Cicoil 310J101-20	0.05 in	1.27 mm	Clear	28 AWG	1 in	25.4 mm	Flat Cable	1 ft, 25 ft, 6000 in	7.62 m, 152.4 m, 304.8 mm	450 V	5 A	0.89 mm	0.035 in	Flexx-Sil™	Unshielded	20	200 MOhm	Copper, Bare	-65 ░C	260 ░C	CE, UL E324413
Cicoil 310J101-16-CA003															Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket	16	0.1 in	2.54 mm	3 ft	914.4 mm	Clear, Ribbon
Cicoil 310J101-10-CA003															Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm	3 ft	914.4 mm	Clear, Ribbon	10
Cicoil 310J101-14-CA006								6 ft	1.83 m						Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm			Clear, Ribbon	14
Cicoil 310J101-14	0.05 in	1.27 mm	Clear	28 AWG			Flat Cable	1 ft, 25 ft, 50 ft, 1000 ft	7.62 m, 15.24 m, 304.8 mm, 304.8 m	450 V	5 A	0.89 mm	0.035 in	Flexx-Sil™	Unshielded	14	200 MOhm	Copper, Bare	-65 ░C	260 ░C	CE, UL E324413									10 ft	3.05 m			0.7 in	17.78 mm
Cicoil 310J101-10-CA006								6 ft	1.83 m						Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm			Clear, Ribbon	10
Cicoil 310J101-20-CA003															Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm	3 ft	914.4 mm	Clear, Ribbon	20
Cicoil 310J101-34	0.05 in	1.27 mm	Clear	28 AWG			Flat Cable	1 ft, 50 ft, 6000 in	15.24 m, 152.4 m, 304.8 mm	450 V	5 A	0.89 mm	0.035 in	Flexx-Sil™	Unshielded	34	200 MOhm	Copper, Bare	-65 ░C	260 ░C	CE, UL E324413									100 ft	30.48 m					1.7 in	43.18 mm
Cicoil 310J101-26	0.05 in	1.27 mm	Clear	28 AWG	33.02 mm		Flat Cable	1 ft, 25 ft, 50 ft, 6000 in	7.62 m, 15.24 m, 152.4 m, 304.8 mm	450 V	5 A	0.89 mm	0.035 in	Flexx-Sil™	Unshielded	26	200 MOhm	Copper, Bare	-65 ░C	260 ░C	CE, UL E324413									10 ft, 100 ft	3.05 m, 30.48 m							1.3 "
Cicoil 310J101-26-CA003															Unshielded							0.05 "	1.27 mm	IDC	2	Socket to Socket		0.1 in	2.54 mm	3 ft	914.4 mm	Clear, Ribbon	26
