926820-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 15.5-20AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 15.5-20AWG 0.250

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

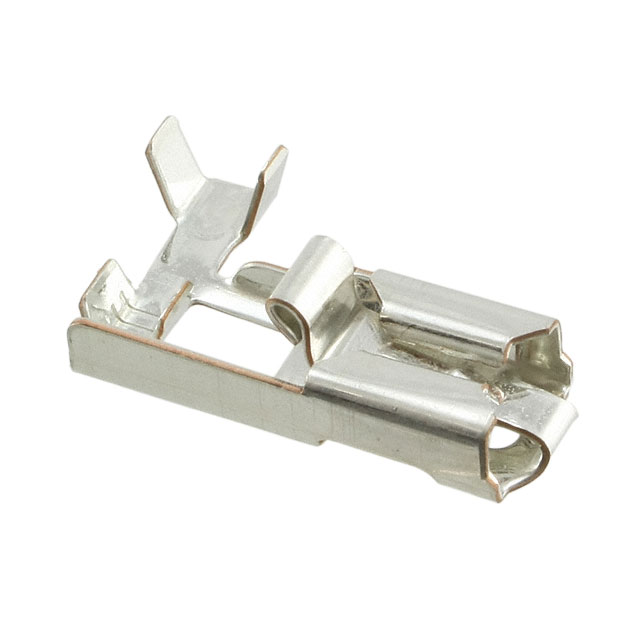

0.250" (6.35mm) Quick Connect Female 15.5-20 AWG Crimp Connector Non-Insulated

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	926820-1	926820 Series

Contact Finish	Tin	Tin, Silver
Contact Material	Phosphor Bronze	Brass, Phosphor Bronze
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max]	3.3 mm	3.3 mm
Insulation Diameter [Max]	0.13 in	0.13 in
Insulation Diameter [Min]	0.087 "	0.087 "
Insulation Diameter [Min]	2.21 mm	2.21 mm
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Flag, Angled - 90°	Flag, Angled - 90°
Termination	Crimp	Crimp
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	16 AWG	16 AWG

CONN QC RCPT 15.5-20AWG 0.250

Part	Insulation	Contact Material	Contact Finish	Gender	Tab Width	Tab Width	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Termination	Tab Thickness	Tab Thickness	Mounting Type	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]
TE Connectivity AMP Connectors 926820-4	Non-Insulated	Brass	Tin	Female	6.35 mm	0.25 in	0.087 "	3.3 mm	0.13 in	2.21 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	20 AWG	16 AWG
TE Connectivity AMP Connectors 926820-1	Non-Insulated	Phosphor Bronze	Tin	Female	6.35 mm	0.25 in	0.087 "	3.3 mm	0.13 in	2.21 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	20 AWG	16 AWG
TE Connectivity AMP Connectors 926820-8	Non-Insulated	Phosphor Bronze	Silver	Female	6.35 mm	0.25 in	0.087 "	3.3 mm	0.13 in	2.21 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line)	Angled - 90°, Flag	20 AWG	16 AWG
TE Connectivity AMP Connectors 926820-2	Non-Insulated	Phosphor Bronze	Tin	Female	6.35 mm	0.25 in	0.087 "	3.3 mm	0.13 in	2.21 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	20 AWG	16 AWG
