DF75NB160

Active

SanRex Corporation

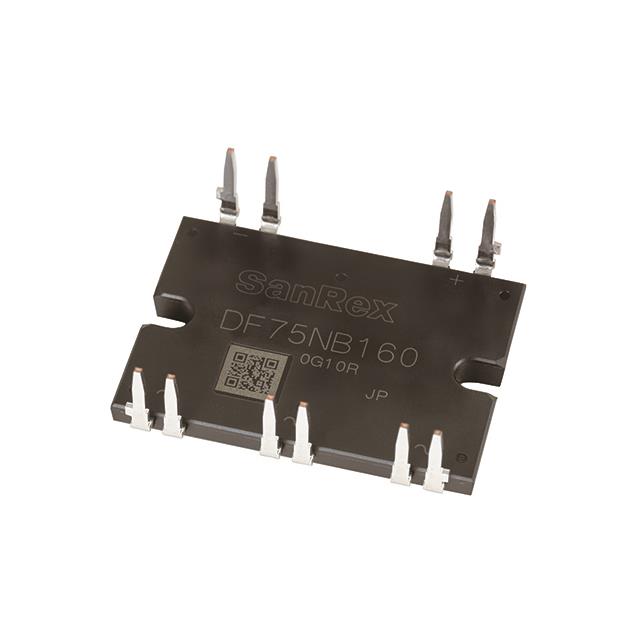

DIODE MODULE 1600V 75A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE 1600V 75A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	24	$ 41.14

General part information

Bridge Rectifier Three Phase Standard 1.6 kV Through Hole 5-DIP

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	DF75NB160	DF75 Series

Current - Average Rectified (Io)	75 A	75 A
Current - Reverse Leakage @ Vr	8 mA	8 - 10 mA
Diode Type	Three Phase	Three Phase
Mounting Type	Through Hole	Chassis Mount, Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	5-PowerDIP Module	Module, 5-PowerDIP Module
Supplier Device Package	5-DIP	5-DIP
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V	1.2 - 1.4 V
Voltage - Peak Reverse (Max)	1.6 kV	1.6 kV
Voltage - Peak Reverse (Max)	-	800 V

DIODE MODULE 800V 75A

Part	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Diode Type	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Package / Case	Mounting Type	Voltage - Peak Reverse (Max)	Supplier Device Package
SanRex Corporation DF75BA80	800 V	150 °C	-40 °C	Standard	Three Phase	10 mA	1.2 V	75 A	Module	Chassis Mount
SanRex Corporation DF75LA80	800 V	150 °C	-40 °C	Standard	Three Phase	8 mA	1.3 V	75 A	Module	Chassis Mount
SanRex Corporation DF75AA160		150 °C	-40 °C	Standard	Three Phase	10 mA	1.4 V	75 A	Module	Chassis Mount	1.6 kV
SanRex Corporation DF75LB160		150 °C	-40 °C	Standard	Three Phase	8 mA	1.3 V	75 A	Module	Chassis Mount	1.6 kV
SanRex Corporation DF75LA160		150 °C	-40 °C	Standard	Three Phase	8 mA	1.3 V	75 A	Module	Chassis Mount	1.6 kV
SanRex Corporation DF75NB160		150 °C	-40 °C	Standard	Three Phase	8 mA	1.3 V	75 A	5-PowerDIP Module	Through Hole	1.6 kV	5-DIP
SanRex Corporation DF75LB80	800 V	150 °C	-40 °C	Standard	Three Phase	8 mA	1.3 V	75 A	Module	Chassis Mount
