ASP025 Series

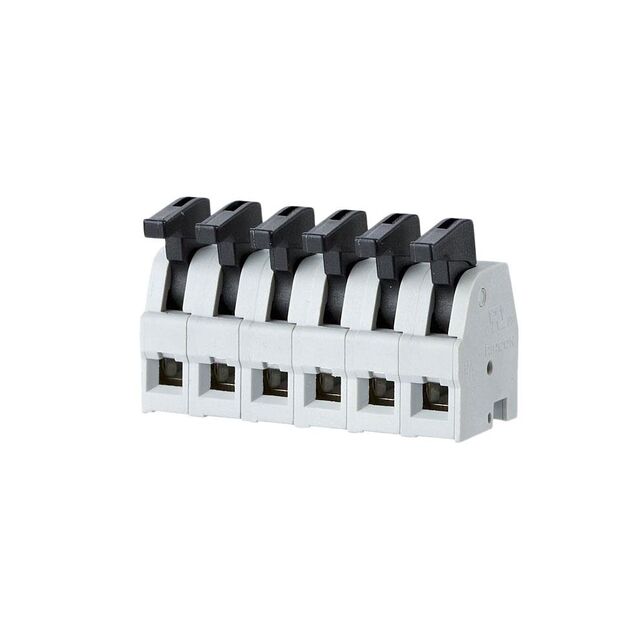

20 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP0252004 |
|---|---|
| Color | Gray |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - UL | 8 A |
| Features | Lever Actuated |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| Ingress Protection | IP20 |
| Insulation Height | 0.543 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 20 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Plug Wire Entry Angle | 90 ° |
| Positions Per Level | 20 |
| Termination Style | Tension Clamp, Screwless - Spring Cage |
| Type | Plug for Unshrouded Header |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 16 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
