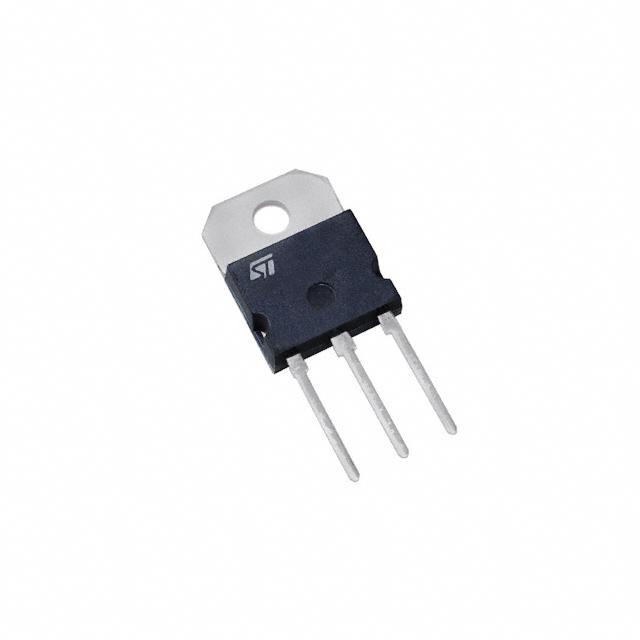

BYW99P-200
ActiveSTMicroelectronics
DIODE ARRAY GP 200V 15A SOT93
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BYW99P-200
ActiveSTMicroelectronics
DIODE ARRAY GP 200V 15A SOT93
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BYW99P-200 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 15 A |
| Current - Reverse Leakage @ Vr | 20 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | TO-218-3 |
| Reverse Recovery Time (trr) | 40 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOT-93 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BYW99 Series
DIODE ARRAY GP 200V 15A SOT93
| Part | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Technology | Reverse Recovery Time (trr) | Supplier Device Package | Mounting Type | Package / Case | Voltage - Forward (Vf) (Max) @ If | Current - Average Rectified (Io) (per Diode) | Speed | Diode Configuration | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Reverse Leakage @ Vr |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics BYW99P-200 | 150 °C | -40 °C | Standard | 40 ns | SOT-93 | Through Hole | TO-218-3 | 850 mV | 15 A | 200 mA, 500 ns | 1 Pair Common Cathode | 200 V | 20 µA |
Description
General part information
BYW99 Series
Diode Array 1 Pair Common Cathode 200 V 15A Through Hole TO-218-3
