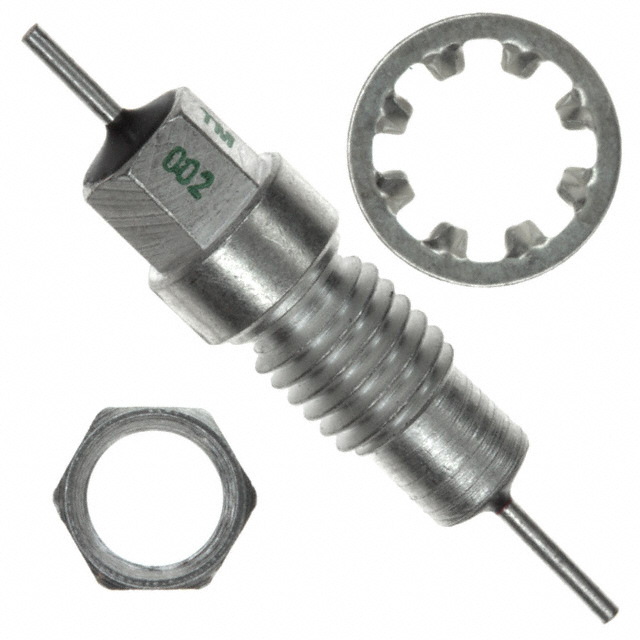

4253-002LF
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 0.05UF CHASSIS
4253-002LF
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 0.05UF CHASSIS
Description
General part information
4253-002LF
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 0.05µF 10 A Axial, Bushing
Technical Specifications
Parameters and characteristics for this part
| Specification | 4253-002LF |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Attenuation Value | 75 dB |
| Capacitance | 0.05 µF |
| Current | 10 A |
| ESD Protection | No |
| Filter Order | 3 |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 0.807 in |
| Technology | LC (Pi) |
| Type | Low Pass |
| Voltage - Rated | 70 VAC |
