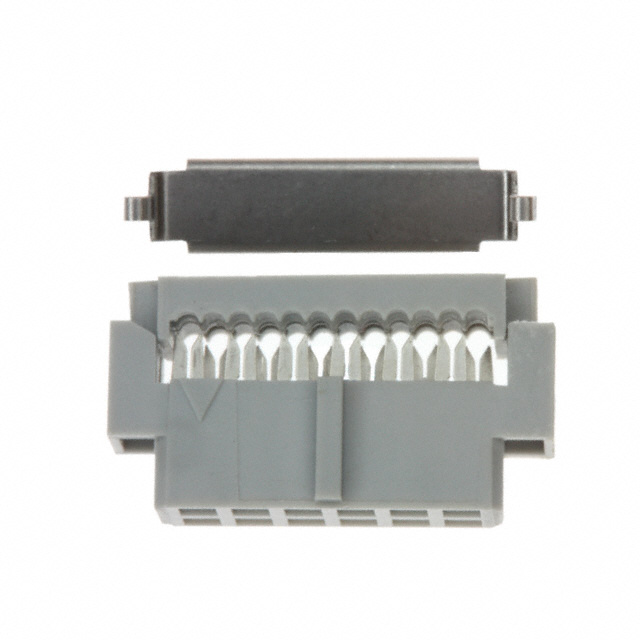

CONN RCPT 12POS IDC 28AWG GOLD

Search across all available documentation for this part.

Active

CONN RCPT 12POS IDC 28AWG GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	152212-0113-GB	152212 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Contact Type	Female Socket	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	12	12
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 2 ROW, 12 CONTACTS, CABLE MOUNT

Part	Cable Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Contact Finish	Connector Type	Wire Type	Wire Gauge	Number of Rows	Color	Pitch [x]	Pitch [x]	Features	Row Spacing	Row Spacing
3M 152212-0100-GB	IDC	Female Socket	0.76 Ám	30 Áin	Free Hanging (In-Line)	12	Gold	Receptacle	Ribbon Cable	28 AWG	2	Gray	0.079 in	2 mm	Feed Through	2 mm	0.079 in
3M 152212-0113-GB	IDC	Female Socket	0.76 Ám	30 Áin	Free Hanging (In-Line)	12	Gold	Receptacle	Ribbon Cable	28 AWG	2	Gray	0.079 in	2 mm	Feed Through, Polarizing Key, Strain Relief	2 mm	0.079 in
3M 152212-0100-GG	IDC	Female Socket	0.38 µm	15 µin	Free Hanging (In-Line)	12	Gold	Receptacle	Ribbon Cable	28 AWG	2	Gray	0.079 in	2 mm	Feed Through	2 mm	0.079 in
3M 152212-0110-GG	IDC	Female Socket	0.38 µm	15 µin	Free Hanging (In-Line)	12	Gold	Receptacle	Ribbon Cable	28 AWG	2	Gray	0.079 in	2 mm	Feed Through, Polarizing Key	2 mm	0.079 in
