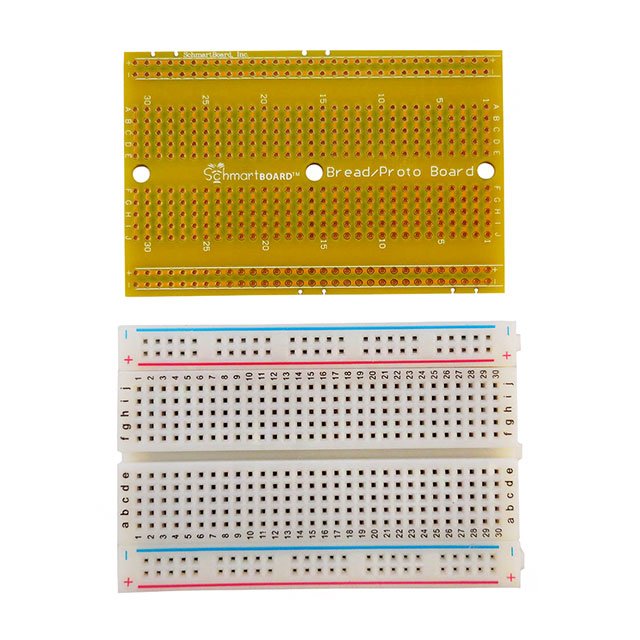

201-0015-31

Active

Schmartboard, Inc.

400 TIE POINT SCHMARTBOARD BREAD

Search across all available documentation for this part.

Active

Schmartboard, Inc.

400 TIE POINT SCHMARTBOARD BREAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	201-0015-31	201-0015 Series

Includes	400 Point Breadboard	400 Point Breadboard
Number of 5-Tie Point Terminals	60	60
Number of Distribution Buses	2	2
Number of Terminal Strips	1	1
Number of Tie Points (Total) [custom]	400	400
Size / Dimension [x]	3.24 "	3.24 "
Size / Dimension [x]	82.3 mm	82.3 mm
Size / Dimension [y]	53.3 mm	53.3 mm
Size / Dimension [y]	2.1 in	2.1 in
Type	Terminal Strip (No Frame)	Terminal Strip (No Frame)

400 TIE POINT SCHMARTBOARD BREAD

Part	Number of Tie Points (Total) [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Distribution Buses	Number of Terminal Strips	Type	Number of 5-Tie Point Terminals	Includes
Schmartboard, Inc. 201-0015-01	400	3.24 "	53.3 mm	82.3 mm	2.1 in	2	1	Terminal Strip (No Frame)	60
Schmartboard, Inc. 201-0015-31	400	3.24 "	53.3 mm	82.3 mm	2.1 in	2	1	Terminal Strip (No Frame)	60	400 Point Breadboard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

Solderless Breadboard Terminal Strip (No Frame) 3.24" L x 2.10" W (82.3mm x 53.3mm)
