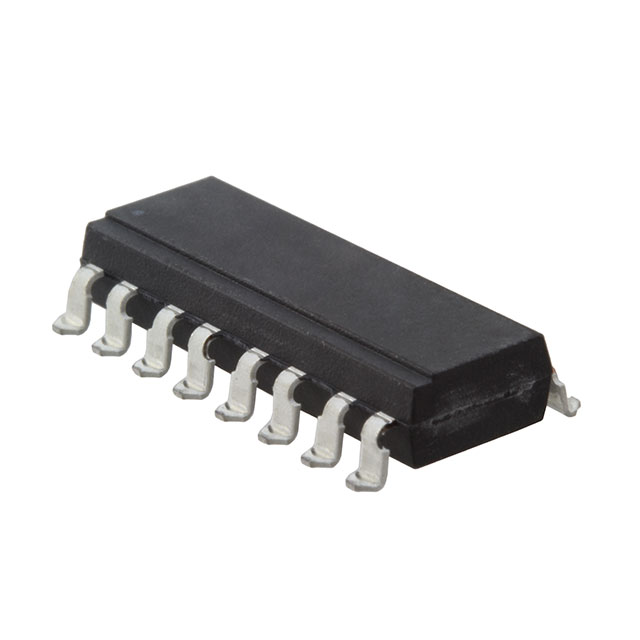

OCP-PCT4116/E-TR

Active

Lumex Opto/Components Inc.

OPTOISOLTR 5KV 4CH TRANS 16-SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OPTOISOLTR 5KV 4CH TRANS 16-SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OCP-PCT4116/E-TR	OCP-PCT4116 Series

Current - DC Forward (If) (Max)	50 mA	50 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Max)	600 %	600 %
Current Transfer Ratio (Min) [Min]	60 %	60 %
Input Type	DC	DC
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Channels	4	4
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	16-SMD, Gull Wing	16-SMD, Gull Wing, 16-DIP
Package / Case	-	0.3 in
Package / Case	-	7.62 mm
Rise / Fall Time (Typ) [custom]	5 µs	5 µs
Rise / Fall Time (Typ) [custom]	4 µs	4 µs
Supplier Device Package	16-SMD	16-SMD, 16-DIP
Vce Saturation (Max) [Max]	300 mV	300 mV
Voltage - Output (Max) [Max]	60 V	60 V

OPTOISOLTR 5KV 4CH TRANS 16-SMD

Part	Voltage - Output (Max) [Max]	Mounting Type	Package / Case	Output Type	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Current Transfer Ratio (Max)	Input Type	Number of Channels	Vce Saturation (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max)	Package / Case	Package / Case
Lumex Opto/Components Inc. OCP-PCT4116/E-TR	60 V	Surface Mount	16-SMD, Gull Wing	1.81 mOhm	60 %	16-SMD	600 %	DC	4	300 mV	100 °C	-30 ░C	50 mA	5 µs	4 µs	50 mA
Lumex Opto/Components Inc. OCP-PCT4116/E	60 V	Through Hole	16-DIP	1.81 mOhm	60 %	16-DIP	600 %	DC	4	300 mV	100 °C	-30 ░C	50 mA	5 µs	4 µs	50 mA	0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Transistor Output 5000Vrms 4 Channel 16-SMD

Technical documentation and resources

No documents available
