TFSQ0402C0H1C2R8WT
ObsoleteTDK Corporation
CAP THIN FILM 2.8PF 16V 01005
TFSQ0402C0H1C2R8WT
ObsoleteTDK Corporation
CAP THIN FILM 2.8PF 16V 01005
Description
General part information
TFSQ0402C0H1C2R8WT

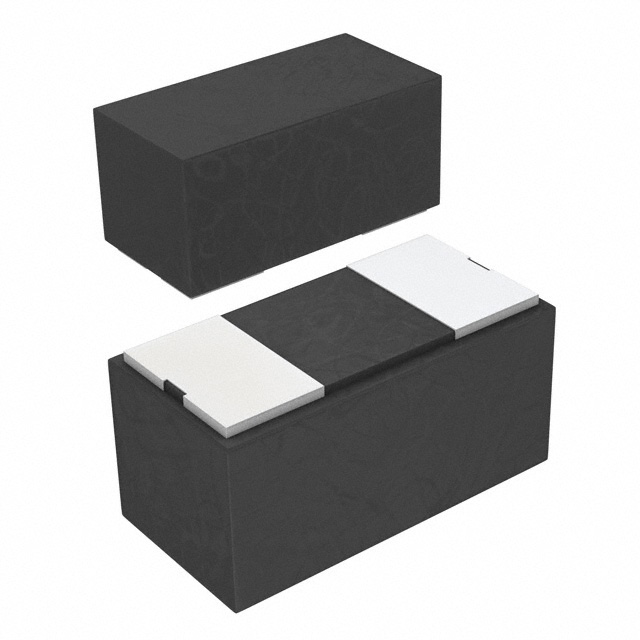

2.8 pF Thin Film Capacitor 16 V 01005 (0402 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TFSQ0402C0H1C2R8WT |
|---|---|
| Capacitance | 2.8 pF |
| Features | General Purpose |
| Height - Seated (Max) | 0.009 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 01005 (0402 Metric) |
| Size / Dimension Length | 0.016 in |
| Size / Dimension Width | 0.008 in |
| Tolerance | 0.05 pF |
| Voltage - Rated | 16 V |
