430036-504
ActiveLaird Thermal Systems, Inc.

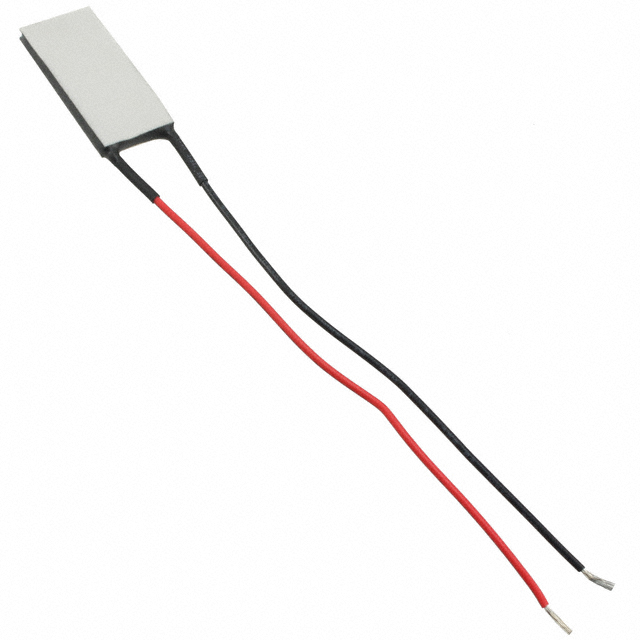

PELTIER CP10,63,05,L,EP,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
430036-504
ActiveLaird Thermal Systems, Inc.
PELTIER CP10,63,05,L,EP,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430036-504 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.2 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 16.6 W |
| Resistance | 1.66 Ohms |
| Size / Dimension [x] | 29.72 mm |
| Size / Dimension [y] | 15 mm |
| Voltage - Max [Max] | 7.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.26 | |
| 20 | $ 24.95 | |||
| 100 | $ 22.95 | |||
Description
General part information
430036-504
Peltier Module 16.6W @ 25°C 3.9 A 80°C
