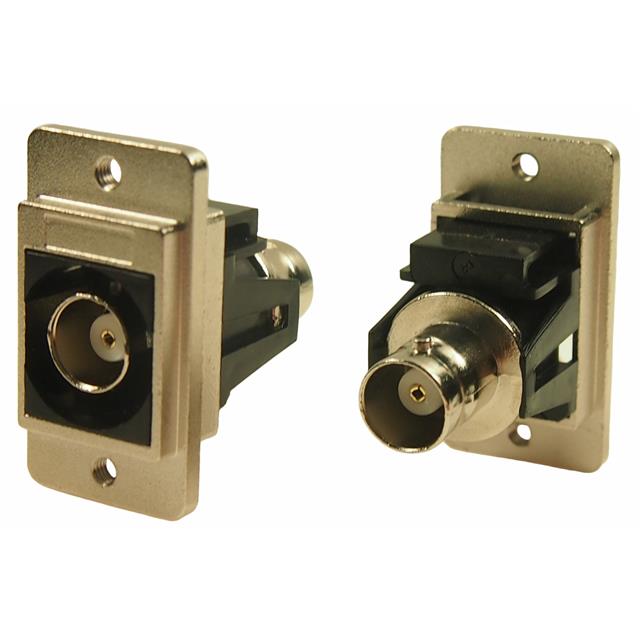

CP30737M3
ActiveCLIFF Electronic Components Ltd
COAX ADAPT BNC TO BNC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP30737M3
ActiveCLIFF Electronic Components Ltd
COAX ADAPT BNC TO BNC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP30737M3 |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Bayonet Lock |
| Impedance | 50 Ohms |
| Mounting Feature | Flange |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.49 | |
| 10 | $ 7.21 | |||
| 25 | $ 6.76 | |||
| 50 | $ 6.44 | |||
| 100 | $ 6.13 | |||
| 250 | $ 5.75 | |||
| 500 | $ 5.47 | |||
| 1000 | $ 5.21 | |||
Description
General part information
CP307 Series
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
