W7A82-8SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 8P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

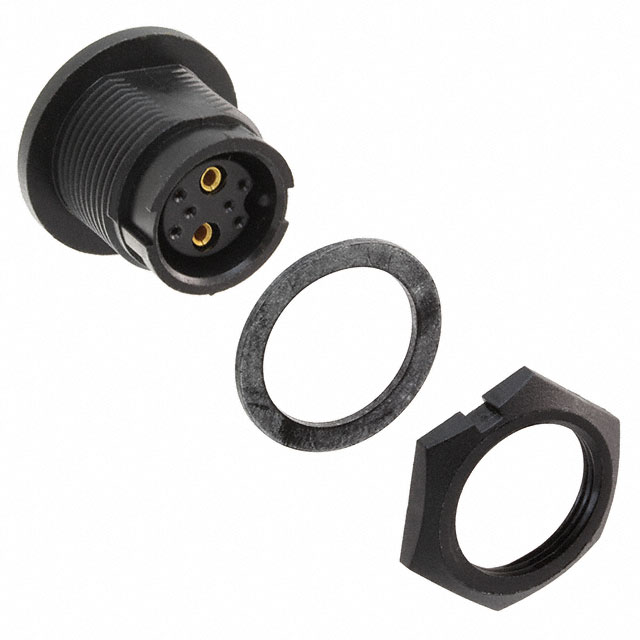

8 (6 + 2 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	W7A82-8SG-300	W7A82-8 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	UV Resistant	UV Resistant
Ingress Protection	IP69K, IP67	IP68, IP66, IP67, IP69K
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions [custom]	8	6 - 8
Number of Positions [custom]	6	4 - 6
Number of Positions [custom]	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	250 VDC	250 - 300 VAC

CONN RCPT FMALE 6POS SOLDER CUP

Part	Contact Finish - Mating	Ingress Protection	Backshell Material, Plating	Insert Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Fastening Type	Mounting Feature	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Primary Material	Connector Type	Orientation	Shielding	Features	Applications
Conxall/Switchcraft W7A82-8SG-P-3ES	Gold	IP66, IP67, IP68	Thermoplastic	Thermoplastic	Copper Alloy	85 °C	-40 °C	300 VAC	Bayonet Lock	Bulkhead - Front Side Nut	Black	4	6	2	Varies by Wire Gauge	Plastic	Receptacle, Female Sockets	Keyed	Unshielded	UV Resistant	Automotive, Communication Systems, Instrumentation
Conxall/Switchcraft W7A82-8SG-300	Gold	IP67, IP69K	Thermoplastic	Thermoplastic	Copper Alloy	85 °C	-40 °C	250 VDC	Bayonet Lock	Bulkhead - Front Side Nut	Black	6	8	2	Varies by Wire Gauge	Plastic	Receptacle, Female Sockets	Keyed	Unshielded	UV Resistant	Automotive, Communication Systems, Instrumentation
