PC16DH-07CP06-104A2020-TA
ActiveAmphenol Piher Sensing Systems
POT 100K OHM 1/5W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC16DH-07CP06-104A2020-TA
ActiveAmphenol Piher Sensing Systems
POT 100K OHM 1/5W CARBON LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC16DH-07CP06-104A2020-TA |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Type | Knurled |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 0.75 |
| Bushing Thread | M7 |
| Number of Gangs | 2 |
| Number of Turns | 1 |
| Power (Watts) | 0.2 W |
| Power (Watts) | 1/5 |
| Resistance (Ohms) | 100 kOhms |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [x] | 18 mm |
| Size - Body [x] | 0.709 " |
| Size - Body [y] | 0.63 in |
| Size - Body [y] | 16 mm |
| Taper | Linear |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.61 | |
| 10 | $ 4.50 | |||
| 25 | $ 4.12 | |||
| 50 | $ 3.85 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.32 | |||
Description
General part information
PC16DH-07CP06-104A2020-TA

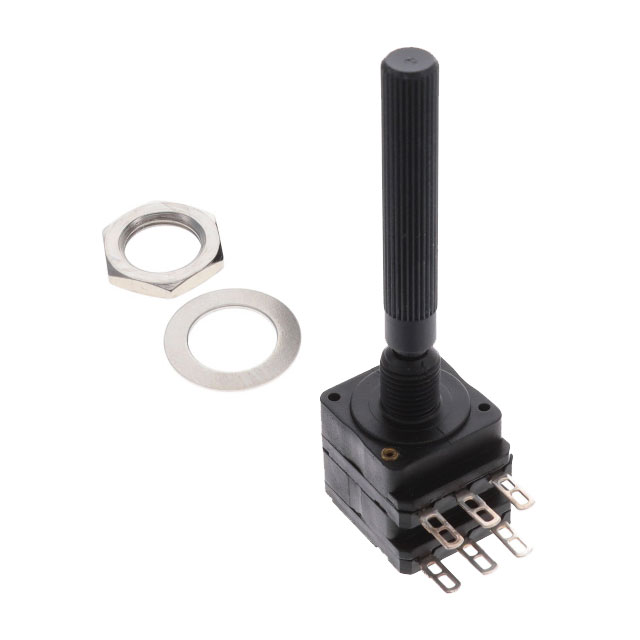

100k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.2W, 1/5W Solder Lug
