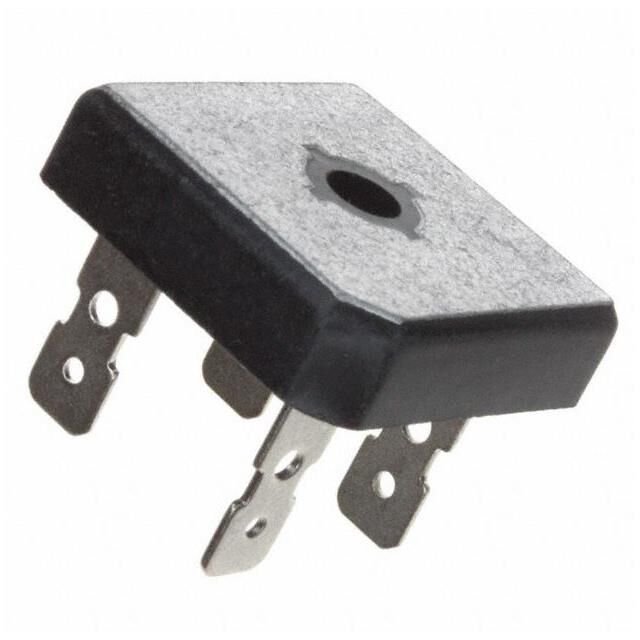

GBPC3501-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 100V 35A GBPC

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 100V 35A GBPC

Technical Specifications

Parameters and characteristics for this part

Specification	GBPC3501-G

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, GBPC
Supplier Device Package	GBPC
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	100 V

BRIDGE RECT 1PHASE 100V 35A GBPC

Part	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Package / Case
Comchip Technology GBPC3501-G	100 V	QC Terminal	GBPC	Standard	1.1 V	Single Phase	-55 °C	150 °C	10 µA	35 A	4-Square, GBPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.34

General part information

Bridge Rectifier Single Phase Standard 100 V QC Terminal GBPC
