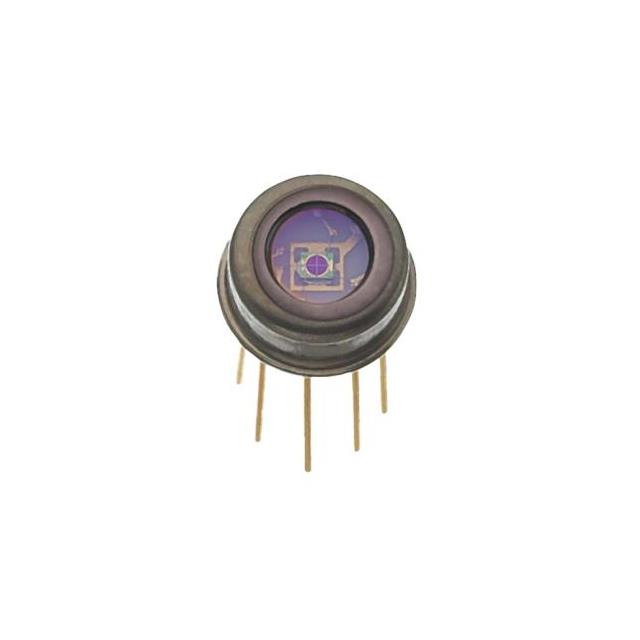

FCI-INGAAS-Q1000
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE TO5-8 MET CAN
FCI-INGAAS-Q1000
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE TO5-8 MET CAN
Description
General part information
FCI-INGAAS-Q1000
Photodiode 3ns TO-5-8 Metal Can
Technical Specifications
Parameters and characteristics for this part
| Specification | FCI-INGAAS-Q1000 |
|---|---|
| Active Area Diameter | 3 mm |
| Active Area Shape | Dia |
| Current - Dark (Typ) | 500 µA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | TO-5-8 Metal Can |
| Response Time | 3 ns |
| Responsivity | 0.95 A/W |
| Spectral Range (Maximum) | 1700 nm |
| Spectral Range (Minimum) | 900 nm |
| Voltage - DC Reverse (Vr) (Max) | 15 V |
