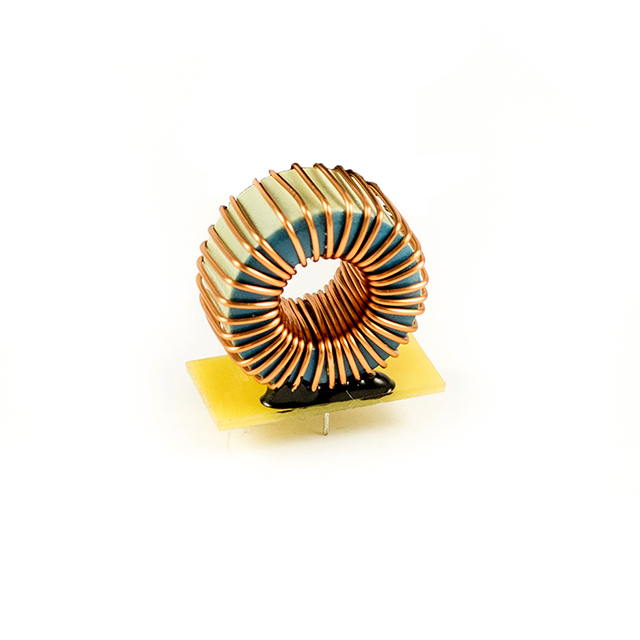

VTCB921-101M-RC
ActiveAllied Components International
100UH, TOROIDAL CHOKE
VTCB921-101M-RC
ActiveAllied Components International
100UH, TOROIDAL CHOKE
Description
General part information
VTCB921-101M-RC
100 µH Unshielded Toroidal Inductor 100mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | VTCB921-101M-RC |
|---|---|
| Current - Saturation (Isat) | 2.6 A |
| DC Resistance (DCR) (Max) | 100 mOhm |
| Height - Seated (Max) | 0.85 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Length | 0.846 in |
| Size / Dimension Width | 0.472 in |
| Tolerance | 20 % |
| Type | Toroidal |
