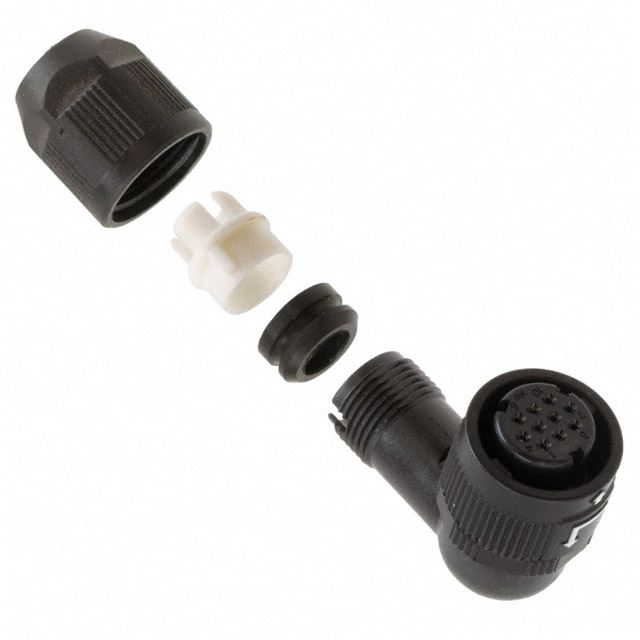

Specification	HR34B-12WLPA-10S(71)

Applications	Telecommunications
Backshell Material	Aluminum Alloy
Cable Opening (Max)	0.256 in
Cable Opening (Min)	0.224 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8 µin
Contact Material	Phosphor Bronze
Current Rating	3 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Rotatable, Backshell, Strain Relief
Ingress Protection Description	Oil Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67F, IP68F
Insert Material	Polyphenylene Sulfide, PPS
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-25 °C
Orientation	N (Normal)
Plating	Black Chromate
Position Types	Power
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shell Size - Insert	12
Shell Size - Insert	12
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating (AC)	200 VAC
Voltage Rating (DC)	250 VDC

HR34B Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Fastening Type	Features	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Contact Material	Contact Finish Thickness - Mating	Shell Finish	Number of Positions	Position Types	Insert Material	Primary Material	Material Flammability Rating	Voltage Rating (AC)	Voltage Rating (DC)	Contact Finish - Mating	Cable Opening (Max)	Cable Opening (Min)	Applications	Shell Size - Insert	Shell Size - Insert	Shielding	Termination	Connector Type	Color	Plating	Backshell Material	Mounting Type	Note	Housing Color	Contact Shape	Type	Contact Type	Backshell Material, Plating
Hirose Electric Co Ltd HR34B-12WLPK-10S	125 °C	-25 °C	3 A	Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	Dust Tight Oil Resistant Waterproof	IP67F IP68F	Zinc Alloy	Phosphor Bronze	8 µin	Chrome	10	Power	Polyphenylene Sulfide PPS	Metal	UL94 V-0	200 VAC	250 VDC	Gold	0.354 in	0.315 in	Telecommunications	12	12	Unshielded	Solder Cup	Female Sockets Plug	Black	Black Chromate	Aluminum Alloy	Free Hanging (In-Line) Right Angle
Hirose Electric Co Ltd HR34B-12WLPK-10SC	125 °C	-25 °C		Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	Dust Tight Waterproof	IP67 IP68	Zinc Alloy			Chrome	10		Polyphenylene Sulfide PPS		UL94 V-0							12	12	Unshielded		Plug Housing				Free Hanging (In-Line) Right Angle	Contacts Not Included	Black	Circular	For Female Sockets	Crimp
Hirose Electric Co Ltd HR34B-12WLPE-10S	125 °C	-25 °C	3 A	Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	Dust Tight Oil Resistant Waterproof	IP67F IP68F	Zinc Alloy	Phosphor Bronze	8 µin	Chrome	10	Power	Polyphenylene Sulfide PPS	Metal	UL94 V-0	200 VAC	250 VDC	Gold	0.287 in	0.256 in	Telecommunications	12	12	Unshielded	Solder Cup	Female Sockets Plug	Black			Free Hanging (In-Line) Right Angle						Nylon Polyamide (PA)
Hirose Electric Co Ltd HR34B-12WLPD-4S	125 °C	-25 °C	5 A	Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	Dust Tight Oil Resistant Waterproof	IP67F IP68F	Zinc Alloy	Copper Alloy	78.7 Ąin	Chrome	4	Power	Polyphenylene Sulfide PPS	Metal	UL94 V-0			Silver	0.256 in	0.224 in	Telecommunications	12	12	Unshielded	Solder Cup	Female Sockets Plug	Black			Free Hanging (In-Line) Right Angle						Nylon Polyamide (PA)
Hirose Electric Co Ltd HR34B-12WPE-4S-X	125 °C	-25 °C	5 A	Bayonet Lock	Backshell Coupling Nut Strain Relief	X	Dust Tight Oil Resistant Waterproof	IP67F IP68F	Zinc Alloy	Copper Alloy	78.7 Ąin	Chrome	4	Power	Polyphenylene Sulfide PPS	Metal	UL94 V-0			Silver	0.287 in	0.256 in	Telecommunications	12	12	Unshielded	Solder Cup	Female Sockets Plug	Black			Free Hanging (In-Line)						Nylon Polyamide (PA)
Hirose Electric Co Ltd HR34B-12WLPA-10SC	125 °C	-25 °C		Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	Dust Tight Waterproof	IP67 IP68	Zinc Alloy			Chrome	10		Polyphenylene Sulfide PPS		UL94 V-0							12	12	Unshielded		Plug Housing				Free Hanging (In-Line) Right Angle	Contacts Not Included	Black	Circular	For Female Sockets	Crimp
Hirose Electric Co Ltd HR34B-12WLPD-10SC	125 °C	-25 °C		Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	Dust Tight Waterproof	IP67 IP68	Zinc Alloy			Chrome	10		Polyphenylene Sulfide PPS		UL94 V-0							12	12	Unshielded		Plug Housing				Free Hanging (In-Line) Right Angle	Contacts Not Included	Black	Circular	For Female Sockets	Crimp
Hirose Electric Co Ltd HR34B-12WPB-10SC	125 °C	-25 °C		Bayonet Lock	Backshell Coupling Nut Strain Relief	N (Normal)	Dust Tight Waterproof	IP67 IP68	Zinc Alloy			Chrome	10		Polyphenylene Sulfide PPS		UL94 V-0							12	12	Unshielded		Plug Housing				Free Hanging (In-Line)	Contacts Not Included	Black	Circular	For Female Sockets	Crimp
Hirose Electric Co Ltd HR34B-12WLPE-4S-X	125 °C	-25 °C	5 A	Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	X	Dust Tight Oil Resistant Waterproof	IP67F IP68F	Zinc Alloy	Copper Alloy	78.7 Ąin	Chrome	4	Power	Polyphenylene Sulfide PPS	Metal	UL94 V-0			Silver	0.287 in	0.256 in	Telecommunications	12	12	Unshielded	Solder Cup	Female Sockets Plug	Black			Free Hanging (In-Line) Right Angle						Nylon Polyamide (PA)
Hirose Electric Co Ltd HR34B-12WPE-10S	125 °C	-25 °C	3 A	Bayonet Lock	Backshell Coupling Nut Strain Relief	N (Normal)	Dust Tight Oil Resistant Waterproof	IP67F IP68F	Zinc Alloy	Phosphor Bronze	8 µin	Chrome	10	Power	Polyphenylene Sulfide PPS	Metal	UL94 V-0	200 VAC	250 VDC	Gold	0.287 in	0.256 in	Telecommunications	12	12	Unshielded	Solder Cup	Female Sockets Plug	Black			Free Hanging (In-Line)						Nylon Polyamide (PA)
