880645-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13-17AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13-17AWG 0.250

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

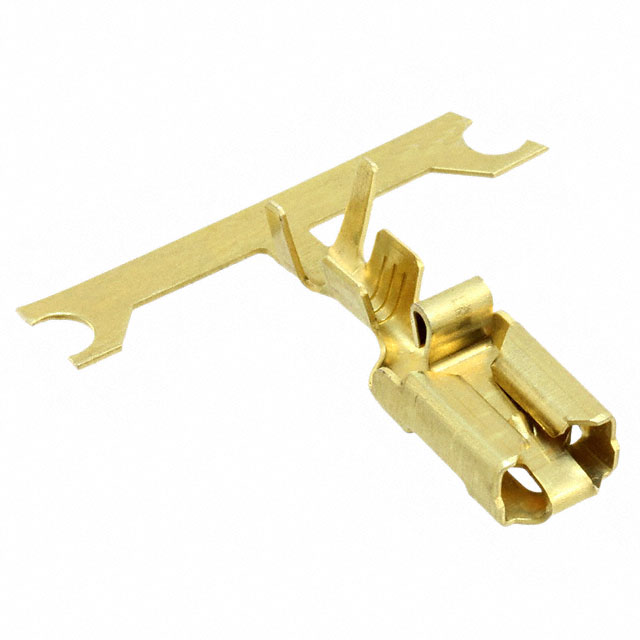

0.250" (6.35mm) Quick Connect Female 13-17 AWG Crimp Connector Non-Insulated

Technical documentation and resources

No documents available

Specification	880645-1	880645 Series

Contact Finish	-	Tin
Contact Material	Brass	Brass
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	3.99 mm	3.99 mm
Insulation Diameter [Max] [diameter]	0.157 in	0.157 in
Insulation Diameter [Min] [diameter]	0.106 in	0.106 in
Insulation Diameter [Min] [diameter]	2.69 mm	2.69 mm
Length - Overall [x]	21.2 mm	21.2 mm
Length - Overall [x]	0.835 in	0.835 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	17 AWG	17 AWG
Wire Gauge [Min]	13 AWG	13 AWG

Part	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Contact Material	Mounting Type	Insulation	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Termination	Gender	Length - Overall [x]	Length - Overall [x]	Contact Finish
TE Connectivity AMP Connectors 880645-6	0.032 in	0.81 mm	6.35 mm	0.25 in	Brass	Free Hanging (In-Line)	Non-Insulated	Standard	13 AWG	17 AWG	3.99 mm	0.106 in	0.157 in	2.69 mm	Crimp	Female	21.2 mm	0.835 in	Tin
TE Connectivity AMP Connectors 880645-1	0.032 in	0.81 mm	6.35 mm	0.25 in	Brass	Free Hanging (In-Line)	Non-Insulated	Standard	13 AWG	17 AWG	3.99 mm	0.106 in	0.157 in	2.69 mm	Crimp	Female	21.2 mm	0.835 in
