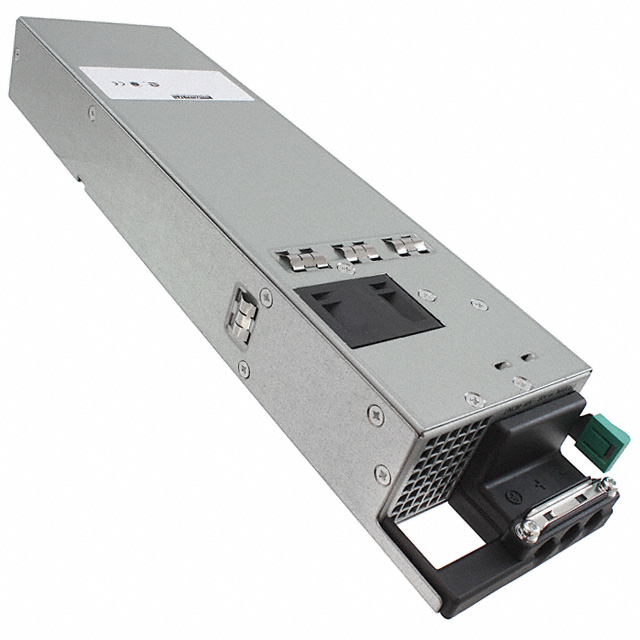

D1U3CS-D-850-12-HC4C
ActiveMurata Power Solutions Inc.
DC/DC CONVERTER 12V 850W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D1U3CS-D-850-12-HC4C
ActiveMurata Power Solutions Inc.
DC/DC CONVERTER 12V 850W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D1U3CS-D-850-12-HC4C | D1U3CS-D Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CB, TUV, CE, cCSAus | CB, TUV, CE, cCSAus |
| Current - Output (Max) [Max] | 69.1 A | 69.1 - 133 A |
| Efficiency | 87 % | 87 - 93 % |
| Mounting Type | Rack Mount | Rack Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] [custom] | 50 °C | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Power (Watts) | - | 829 - 1600 W |
| Size / Dimension [x] | 279.4 mm | 279.4 mm |
| Size / Dimension [x] | 11 in | 11 in |
| Size / Dimension [y] | 81.3 mm | 81.3 mm |
| Size / Dimension [y] | 3.2 in | 3.2 in |
| Size / Dimension [z] | 1.57 " | 1.57 " |
| Size / Dimension [z] | 39.9 mm | 39.9 mm |
| Type | Front End | Front End |
| Voltage - Input (Max) [Max] | -72 V | -72 V |
| Voltage - Input (Min) [Min] | -40 V | -40 V |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
D1U3CS-D Series
DC/DC CONVERTER 12V 829W
| Part | Number of Outputs | Voltage - Input (Min) [Min] | Type | Voltage - Output 1 | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Mounting Type | Power (Watts) | Approval Agency | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. D1U3CS-D-850-12-HA3C | 1 | -40 V | Front End | 12 V | ITE (Commercial) | 1.57 " | 81.3 mm | 279.4 mm | 39.9 mm | 11 in | 3.2 in | -10 °C | 50 °C | 69.1 A | -72 V | Rack Mount | 829 W | CB, cCSAus, CE, TUV | 87 % |
Murata Power Solutions Inc. D1U3CS-D-1600-12-HC4EC | 1 | -40 V | Front End | 12 V | ITE (Commercial) | 1.57 " | 81.3 mm | 279.4 mm | 39.9 mm | 11 in | 3.2 in | 133 A | -72 V | Rack Mount | 1600 W | CB, cCSAus, CE | 93 % | ||
Murata Power Solutions Inc. D1U3CS-D-850-12-HC4C | 1 | -40 V | Front End | 12 V | ITE (Commercial) | 1.57 " | 81.3 mm | 279.4 mm | 39.9 mm | 11 in | 3.2 in | -10 °C | 50 °C | 69.1 A | -72 V | Rack Mount | CB, cCSAus, CE, TUV | 87 % |
Description
General part information
D1U3CS-D Series
Front End DC DC Converter 1 Output 12V 69.1A -72V Input
