C1DXS-1636G
ActiveCW Industries
IDC CABLE - CKR16S/AE16G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1DXS-1636G
ActiveCW Industries
IDC CABLE - CKR16S/AE16G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1DXS-1636G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Cable |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Features | Polarizing Key, Strain Relief |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In |
C1DXS-1 Series
| Part | Usage | Cable Termination | Number of Rows | Number of Positions | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shielding | Length [x] | Length [x] | Color | Connector Type | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | Board In | IDC | 2 | 10 | Polarizing Key Strain Relief | 2.54 µm | 100 µin | Tin | Unshielded | 3 ft | 914.4 mm | Multiple Ribbon | Socket to Cable | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | |
CW Industries | Board In | IDC | 2 | 14 | Polarizing Key Strain Relief | 2.54 µm | 100 µin | Tin | Unshielded | 3 ft | 914.4 mm | Multiple Ribbon | Socket to Cable | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | |
CW Industries | Board In | IDC | 2 | 14 | Polarizing Key Strain Relief | 2.54 µm | 100 µin | Tin | Unshielded | 3 ft | 914.4 mm | Socket to Cable | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | ||
CW Industries | Board In | IDC | 2 | 10 | Polarizing Key Strain Relief | 2.54 µm | 100 µin | Tin | Unshielded | 3 ft | 914.4 mm | Socket to Cable | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | ||
CW Industries | Board In | IDC | 2 | Polarizing Key Strain Relief | 2.54 µm | 100 µin | Tin | Unshielded | 3 ft | 914.4 mm | Socket to Cable | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.66 | |
| 10 | $ 4.23 | |||
| 25 | $ 4.00 | |||
| 50 | $ 3.91 | |||
| 100 | $ 3.72 | |||
| 250 | $ 3.26 | |||
| 500 | $ 3.17 | |||
| 1000 | $ 2.70 | |||
| 2500 | $ 2.51 | |||
Description
General part information
C1DXS-1 Series

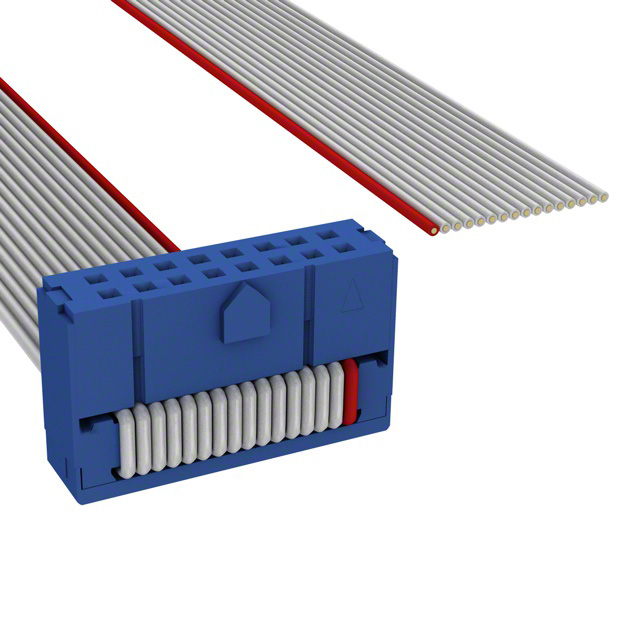

16 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
