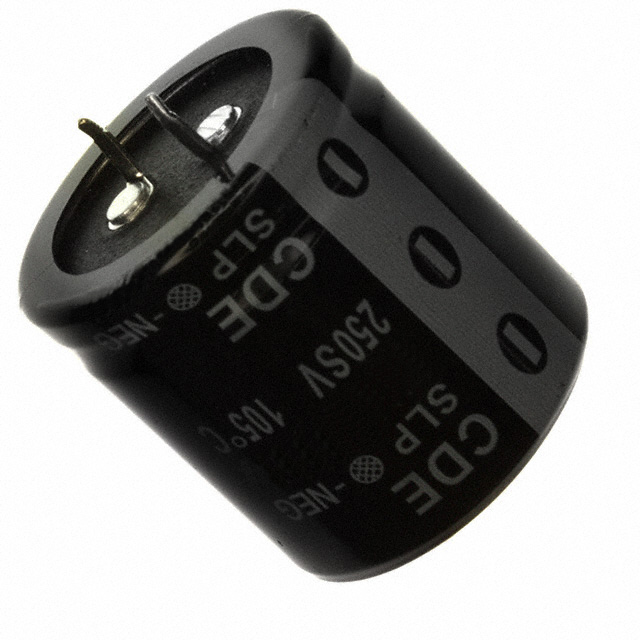

Specification	SLP153M035H5P3

Applications	General Purpose
Capacitance	15000 µF
ESR (Equivalent Series Resistance)	35 mOhm
Height - Seated (Max)	1.378 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	3.9 A, 4.88 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	35 V
