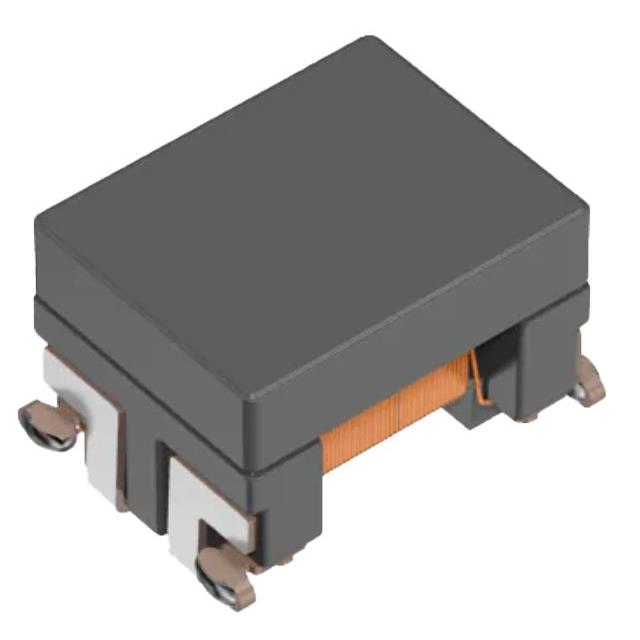

ADL3225VM-2R2M-TL001
2.2 µH Unshielded Wirewound Inductor 1.22 A 180mOhm Max Horizontal, 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | ADL3225VM-2R2M-TL001 |
|---|---|
| Current - Saturation (Isat) | 1.05 A |
| Current Rating | 1.22 A |
| DC Resistance (DCR) (Max) | 180 mOhm |
| Height - Seated (Max) | 0.098 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Package Pad Count | 4 |
| Pad Count | 4 PC Pad |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Supplier Device Package - Orientation | Horizontal |
| Supplier Device Package - Pad Count | 4 PC, 4 PC Pad |
| Tolerance | 20 % |
| Type | Wirewound |
